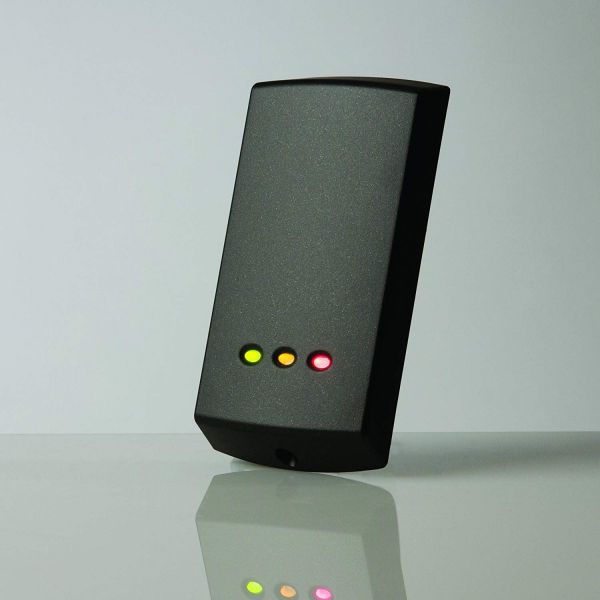

Paxton 353-110-EX P50 Switch2 and Net2 systems Proximity Reader

• Use with Switch2 or Net2
• Simple mounting
• Read range up to 100mm with Proximity cards
• Supplied with a choice of black or white fascias
• Low profile - less than 16mm deep

About - P series readers are for use with Switch2 and Net2 systems. The readers are supplied with a choice of black or white fascias. Other colours are available. Replacement fascias are available to Paxton Access registered installers free of charge. P series readers are available in four sizes.

We have added Genuine HID Technology to the majority of our Paxton readers, they can now read HID 125kHz Proximity tokens, when licensed with an activation card. If required these readers can still be enabled to have Wiegand output, via a separate activation card.

Operation - A token is read by holding it within close proximity of the reader. Once a token has been read the control unit looks up the access permissions of that user. Access is then granted or denied as appropriate. If access is granted the green LED flashes. If access is denied the red LED flashes.
