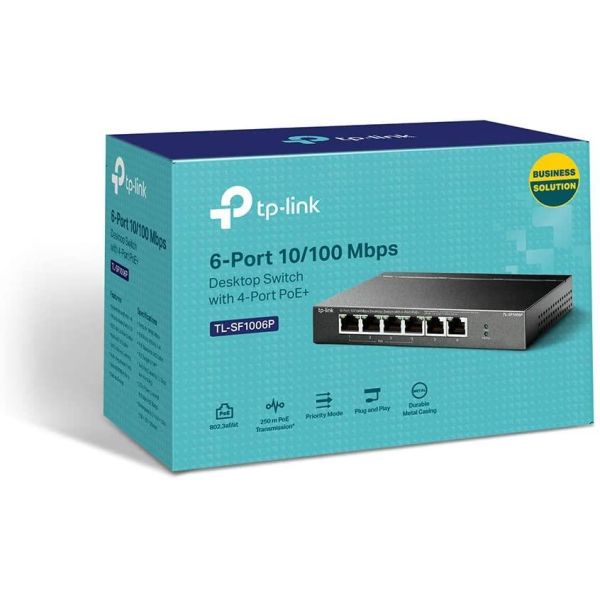

TP-Link TL-SF1006P 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+

• 6× 10/100 Mbps RJ45 ports
• 4× PoE+ ports transfer data and power on individual cables
• Works with IEEE 802.3af/at compliant PDs
• Up to 250m data and power transmitting range under Extend Mode**
• Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
• Supports PoE Power up to 30 W for each PoE port
• Supports PoE Power up to 67 W for all PoE ports*
• Plug and play with no configuration required

Professional High-Power Switch with 4 PoE+ Ports

Plug and Play, with PoE Transmission for Surveillance up to 250 m TL-SF1006P

• 67 W PoE Budget*
• Plug and Play
• Transmission Distance up to 250 m**
• One-Click Priority Mode
• Intelligent Power Management
• Durable Metal Casing

Dedicated 4-Port PoE+ Switch (67 W Budget) for Numerous Applications

Compliance with the 802.3af/at PoE standard supports up to 30 W on each PoE port. The total 67 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Surveillance IP Camera
Conference Calls IP Phone
Wi-Fi Coverage
Access Points
4 PoE+ Ports
Up to 30 W on Each Port
Total 67 W Power Budget
Router Internet

Plug and Play, No Configuration Required

deal for IP Surveillance
—Up to 250 m Transmissions

With extend mode, the PoE transmission distance reaches up to 250 m**—perfect for IP Camera deployment in large areas.

**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.

Priority Video Quality Guaranteed

Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on.

Intelligent Power Management

When total power consumption exceeds 67 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

Durable Metal Casing

The interior components of TL-SF1006P are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1006P delivers switching performance you can depend on.

• Compact Desktop Design
• Wall-Mounting
• Fanless Design

What in the Box?

• TL-SF1006P
• Power Adapter
• Installation Guide
