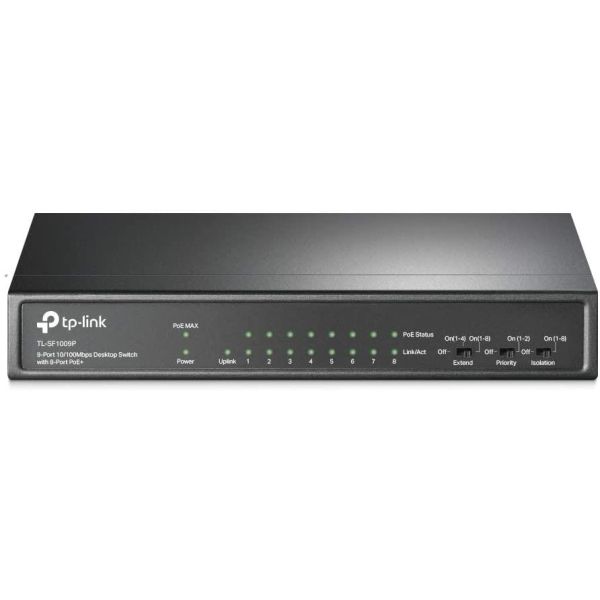

TP-Link TL-SF1009P 9-Port 100Mbps Desktop PoE Switch with 8-Port PoE+ UK

• 9× 10/100 Mbps RJ45 ports
• 8× PoE+ ports transfer data and power on individual cables
• Works with IEEE 802.3af/at compliant PDs
• Supports PoE Power up to 30 W for each PoE port
• Supports PoE Power up to 65 W for 8 PoE ports*
• Up to 250 m data and power transmitting range under Extend Mode**
• Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
• Isolation Mode allows one-click client traffic separation for higher security and performance
• Plug and play with no configuration required

Professional 9-Port Unmanaged Switch with 8 PoE+ Ports

Plug and Play, with PoE Transmission for Surveillance up to 250 m

• 65 W PoE Budget*
• Plug and Play
• Transmission Distance up to 250 m**
• One-Click Priority Mode
• Isolation Mode for Security
• Durable Metal Casing

Professional 9-Port Switch with 8-Port PoE+ (65 W Budget) for Numerous Applications

Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 65 W PoE power budget* for the 8× PoE+ ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

Network Video Recorder
Computer
Printer
Surveillance
IP Camera
Conference Calls
IP Phone
Wi-Fi Coverage
Access Points
Power over Ethernet
TL-SF1009P
Router
Internet
8 PoE+ Ports
Up to 30 W on Each Port
Total 65 W Power Budget

Plug and Play, No Configuration Required

1 Plug In
2  Connect Devices Internet
IP Phone
IP Camera
Access Points
Router
TL-SF1009P

3 Enjoy

Ideal for IP Surveillance
—Up to 250 m Transmissions

With extend mode, the PoE transmission distance reaches up to 250 m**—perfect for IP Camera deployment in large areas.

Priority Mode Button
Priority Video Quality Guaranteed

Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on.

Isolation Mode Button
One-Click Traffic Separation for Ports 1-8

With one click, Isolation Mode easily divides traffic for ports 1–8 to avoid snooping and tampering. This enables the switch to isolate broadcast storm, improving LAN security and data transmission.

Power overload
65W
Intelligent Power Management
Intelligent power supply

Intelligent Power Management

When total power consumption exceeds 65 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
High-Quality Metal
27mm
171mm
98mm
Durable Metal Casing

The interior components of TL-SF1009P are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1009P delivers switching performance you can depend on.

• Compact Desktop Design
• Wall-Mounting
• Fanless Design

What in the Box?

•  TL-SF1009P
• Power Adapter (UK)
• Installation Guide
