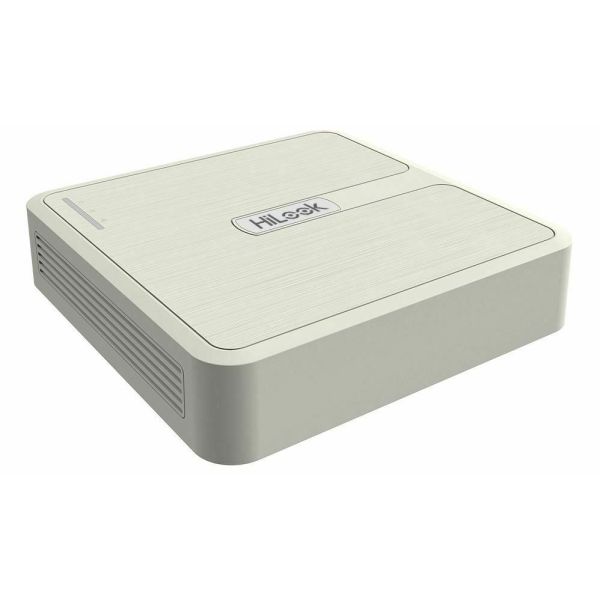

8 Channel Turbo DVR HD 2MP 1080P TVI AHD DVR-108G-F1 HiLook by Hikvision

The HiLook ADP08G1 Digital Video Recorder is light and compact, delivering up to 960p resolution and can hold up to 8 analogue / coax cameras on the system. The DVR also has the ability to monitor and manage remotely via the HiLookVision App on a smartphone, tablet or monitor

Easy Device Management

HiLookVision PC Client and the HiLookVision App allow end-users to connect to the HiLookVision Cloud Server for powerful device management. Users can view live feeds from multiple cameras on a PC or via smartphone (available for iOS and Android).

• Connectable to Turbo HD/HDCVI/AHD/CVBS signal input
• Long distance transmission over UTP and coaxial cable
• One-key enable H.264+ compression to improve encoding efficiency by up to 50% and reduce data storage costs
• Supports 1080p lite and when enabled, the image effect is similar with 1080p
• Simultaneous HDMI/VGA output at up to 1920 × 1080 resolution
• One SATA interface (up to 6 TB capacity per HDD)
• Smart search for efficient playback

  Key Features
• Support H.264+/H.264 video compression
• Support HDTVI/AHD/CVI/CVBS/IP video input
• Up to 5/10/18-ch 960p IP camera input for DVR-104
• Max. 1200 m for 720p HDTVI signaltransmission

  Compression andRecording
  H.264 + video compression improves encoding efficiencyand reduces data storage costs
  Support 1080p lite of all channels. When 1080p lite is on, theimage effect is similar with 1080p

  Storage and Playback
  1SATA interface (up to 6 TB capacity per HDD)
  Smart search for efficientplayback

  Smart Function
  VQD (Video Quality Diagnostics)
  Network & Ethernet Access
  HiLookVision&DDNS (Dynamic Domain Name System) for easy network management
  Configurableoutput bandwidth limi

Video Input and Transmission

•  Connectable to Turbo HD/HDCVI/AHD/CVBS signal input
•  Long distance transmission over UTP and coaxial cable: max. 1200m for 720p Turbo HD signal

Compression and Recording

•  One-key enable H.264+ compression to improve encoding efficiency by up to 50% and reduce data storage costs
•  Supports 1080p lite of all channels and when enabled, the image effect is similar with 1080p

Video Output

•  Simultaneous HDMI/VGA output at up to 1920 × 1080 resolution

Storage and Playback

•  One SATA interface (up to 6 TB capacity per HDD)
•  4/8/16-ch synchronous playback
•  Smart search for efficient playback

Smart Function

•  VQD (Video Quality Diagnostics)
•  Unlock pattern for device login for the admin and clear-text password available
•  GUID file can be exported for password resetting and imported for finding the forgotten password
•  Supports PTZ control via Omnicast VMS of Genetec protocol

Network & Ethernet Access

•  Hik-Connect for easy network management
•  One self-adaptive 10/100 Mbps network interface
•  Output bandwidth limit configurable

IP video input

1 Channel (Up to 960p resolution)

What in the Box?

• 4 CH DVR
• Power supply
• Mouse
