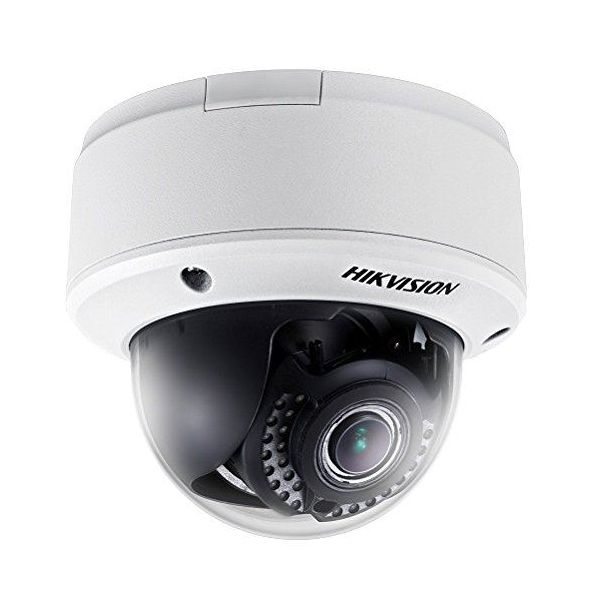

Hikvision D DS-2CD4185F-IZ 8MP 4K HD 2.8-12mm Motor Lens ONVIF Dome IP Camera PoE
Availability:
In stock
SKU
DS-2CD4185F-IZ
Hikvision D DS-2CD4185F-IZ 8MP 4K HD 2.8-12mm Motor Lens ONVIF Dome IP Camera PoE is available to buy in increments of 1
- Up to 4096 x 2160 High Resolution
- WDR, 3D DNR
- Multi-Video Streams
- On-Board Storage, Up to 128 GB
- Up to 30 Meters IR Range
- Motorized Lens with Smart Focus
- Vandal Resistant
| Camera | ||
|---|---|---|
| Image sensor: | | | 1/1.7” Progressive Scan CMOS |
| Min. illumination: | | | Color: 0.014 @ ƒ/1.4 B/W: 0 with IR |
| Shutter time: | | | 1 s to 1/100,000 s |
| Slow shutter: | | | Supported |
| Lens: | | | 2.8 mm to 12mm @ f/1.4; angle of view: 96.0° to 32.6° |
| Lens mount: | | | Φ14 |
| Angle Adjustment: | | | Pan:0° to 355°, tilt: 0° to 75°, rotation: 0° to 355° |
| Auto iris: | | | DC drive |
| Day & night: | | | IR cut filter with auto switch |
| Digital noise reduction: | | | 3D DNR |
| Wide dynamic range: | | | DWDR |
| Compression standard | ||
| Video compression: | | | H.264/MJPEG |
| H.264 codec profile: | | | Baseline Profile/Main Profile/High Profile |
| Video bit rate: | | | 32 Kbps to 16 Mbps |
| Audio compression: | | | G.711/G.722.1/G.726/MP2L2 |
| Audio bit rate: | | | 64 Kbps(G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-128 Kbps(MP2L2) |
| Image | ||
| Max. resolution: | | | 4096 × 2160 |
| Frame rate: | | | 30 fps (4096 × 2160, 3840 × 2160, 1920 × 1080, 1280 × 720) |
| Image settings: | | | Independent with Main Stream and Sub Stream, up to 30 fps (1280 × 720) |
| BLC: | | | Supported |
| Defog: | | | Supported |
| ROI: | | | Supported |
| Day/Night Switch: | | | Auto/Schedule/Triggered by Alarm In |
| Picture Overlay: | | | LOGO picture can be overlaid on video with 128x128 24-bit bmp format |
| Network | ||
| Network storage: | | | NAS (Support NFS,SMB/CIFS) |
| Alarm trigger: | | | Intrusion detection, defocus detection, motion detection, dynamic analysis, tampering alarm, network disconnect, IP address conflict, storage exception |
| Protocols: | | | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| Security: | | | User authentication, watermark, IP address filtering, anonymous access |
| System compatibility: | | | ONVIF, PSIA, CGI, ISAPI |
| Interface | ||
| Audio input: | | | 1-ch 3.5 mm audio interface, Mic in/Line in. |
| Audio output: | | | 1-ch 3.5 mm audio interface |
| Communication interface: | | | 1 RJ-45 10/100/1000M Ethernet port, 1 RS-485 interface and 1 RS-232 interface |
| Alarm I/O: | | | 1/1 |
| Video output: | | | 1 Vp-p composite output (75 Ω/BNC) |
| On-board storage: | | | Built-in microSD/SDHC/SDXC slot, up to 128 GB |
| Reset: | | | Yes |
| General | ||
| Operating conditions: | | | -30° C to 60° C (-22° F to 140° F) Humidity 95% or less (non-condensing) |
| Power supply: | | | 12 VDC ±10%/PoE (802.3af) |
| Power consumption: | | | 13 W MAX |
| IR range: | | | 30 meters |
| Impact protection: | | | IEC60068-275Eh, 20J; EN50102, up to IK10 |
| Dimensions: | | | Φ140 mm × 121.8 mm (Φ 5.51" × 4.80") |
| Weight: | | | 1400 g (3.09 lbs) |
| Manufacturer | Hikvision |
|---|---|
| Product Name | Hikvision D DS-2CD4185F-IZ 8MP 4K HD 2.8-12mm Motor Lens ONVIF Dome IP Camera PoE |
| SKU | DS-2CD4185F-IZ |
