In stock
SKU:
DS-2CD4185F-IZ

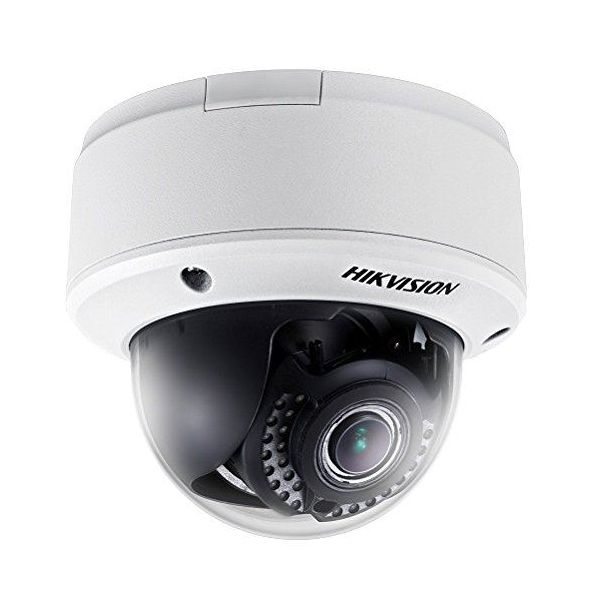

Hikvision D DS-2CD4185F-IZ 8MP 4K HD 2.8-12mm Motor Lens ONVIF Dome IP Camera PoE

Login for Price
  • Up to 4096 x 2160 High Resolution
  • WDR, 3D DNR
  • Multi-Video Streams
  • On-Board Storage, Up to 128 GB
  •  Up to 30 Meters IR Range
  • Motorized Lens with Smart Focus
  •  Vandal Resistant
Camera
Image sensor: | 1/1.7” Progressive Scan CMOS
Min. illumination: | Color: 0.014 @ ƒ/1.4
B/W: 0 with IR
Shutter time: | 1 s to 1/100,000 s
Slow shutter: | Supported
Lens: | 2.8 mm to 12mm @ f/1.4; angle of view: 96.0° to 32.6°
Lens mount: | Φ14
Angle Adjustment: | Pan:0° to 355°, tilt: 0° to 75°, rotation: 0° to 355°
Auto iris: | DC drive
Day & night: | IR cut filter with auto switch
Digital noise reduction: | 3D DNR
Wide dynamic range: | DWDR
Compression standard
Video compression: | H.264/MJPEG
H.264 codec profile: | Baseline Profile/Main Profile/High Profile
Video bit rate: | 32 Kbps to 16 Mbps
Audio compression: | G.711/G.722.1/G.726/MP2L2
Audio bit rate: | 64 Kbps(G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-128 Kbps(MP2L2)
Max. resolution: | 4096 × 2160
Frame rate: | 30 fps (4096 × 2160, 3840 × 2160, 1920 × 1080, 1280 × 720)
Image settings: | Independent with Main Stream and Sub Stream, up to
30 fps (1280 × 720)
BLC: | Supported
Defog: | Supported
ROI: | Supported
Day/Night Switch: | Auto/Schedule/Triggered by Alarm In
Picture Overlay: | LOGO picture can be overlaid on video with 128x128 24-bit bmp format
Network
Network storage: | NAS (Support NFS,SMB/CIFS)
Alarm trigger: | Intrusion detection, defocus detection, motion detection, dynamic analysis, tampering alarm, network disconnect, IP address conflict, storage exception
Protocols: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Security: | User authentication, watermark, IP address filtering, anonymous access
System compatibility: | ONVIF, PSIA, CGI, ISAPI
Interface
Audio input: | 1-ch 3.5 mm audio interface, Mic in/Line in.
Audio output: | 1-ch 3.5 mm audio interface
Communication interface: | 1 RJ-45 10/100/1000M Ethernet port, 1 RS-485 interface and 1 RS-232 interface
Alarm I/O: | 1/1
Video output: | 1 Vp-p composite output (75 Ω/BNC)
On-board storage: | Built-in microSD/SDHC/SDXC slot, up to 128 GB
Reset: | Yes
General
Operating conditions: | -30° C to 60° C (-22° F to 140° F)
Humidity 95% or less (non-condensing)
Power supply: | 12 VDC ±10%/PoE (802.3af)
Power consumption: | 13 W MAX
IR range: | 30 meters
Impact protection: | IEC60068-275Eh, 20J; EN50102, up to IK10
Dimensions: | Φ140 mm × 121.8 mm (Φ 5.51" × 4.80")
Weight: | 1400 g (3.09 lbs)
More Information
Manufacturer
Hikvision
SKU
DS-2CD4185F-IZ
