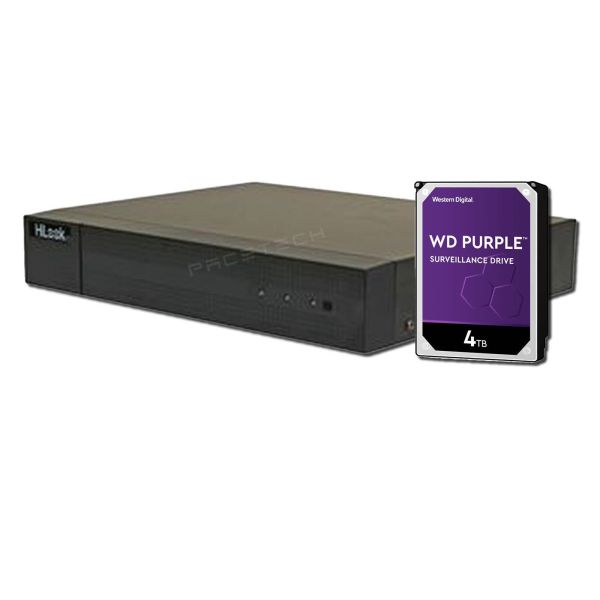

HiLook by Hikvision DVR-208Q-K1 8 Channel 4MP 4-in-1 Turbo HD HDTVI/HDCVI/AHD/CVBS DVR Recorder 4TB WD Purple HDD

Video Input and Transmission

l Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input

l Up to 6/12/24-ch 6 MP IP cameras input for DVR-204/208/216Q-K1

l Long distance transmission over UTP and coaxial cable: max. 800m for 1080p and 1200m for 720p HDTVI signal

Compression and Recording

l H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras

l Connectable to H.265+/H.265/H.264+/H.264 IP cameras

l H.265+ can be enabled to improve encoding efficiency and reduce data storage costs

l Up to 4 MP lite resolution for recording

Video Output

l Simultaneous HDMI/VGA output

l HDMI output at up to 4K (3840 × 2160) resolution for DVR-216Q-K1

Storage and Playback

l 1 SATA interface (up to 10 TB capacity per HDD)

l 4/8/16-ch synchronous playback

l Smart search for efficient playback

l Supports the 3^rd party cloud storage (Dropbox/Google Drive/Microsoft OneDrive)

Smart Function

l VQD (Video Quality Diagnostics)

Network & Ethernet Access

l Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management

l 1 RJ45 10M/100M Ethernet network interface for DVR-204Q/208Q-K1, and 1 RJ45 10M/100M/1000M Ethernet network interface for DVR-216Q-K1

l Output bandwidth limit configurable
