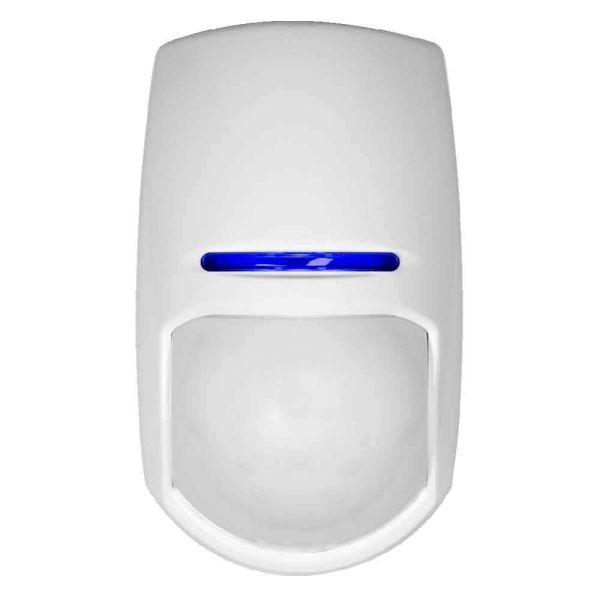

PYRONIX KX10DP-WE 10m PIR Sensor Pet Immune Tolerant Wireless Detector Grade 2

Responsive detection with a Passive Infrared (PIR) sensor
The KX10DP-WE consists of a PIR, which works by constantly monitoring the infrared energy levels around a room. The detector will recognise any changes caused by the entry of an
intruder and inform the panel to go into an alarm condition.

daptable, optimised & stylish
•   Volumetric detection
Ideal large area coverage for living rooms, dining rooms, kitchens and more.
•   10m detection coverage
Detection coverage up to 10m.
•   ABS plastics
3mm polished nish produces a professional and sleek nish while reducing electrostatic interference on the PIR sensor.
•   Sealed optics
Protect the detector from possible insect infestation, shields air movement in front of the pyro-electric sensor and protects against adverse re ections from inside the detector housing
Dogs & Cats allowed
•   Pet Immune (PI)
The detector’s intelligent PI (Pet Immune) technology analyses the di erence between an intruder and a pet signal, with immunity up
to 24kg and 10m coverage range.Avoid false alarms with Blue Wave Technology (BWT)Advanced signal processing and 3D optics safeguard against
false alarms and improve immunity to interference:
•   Digital temperature compensation
Digitally adjusts the sensitivity of the detector to maintain its speci ed range when the background temperature is close to
body temperature.
•   Automatic sensitivity
The detector self-adapts to changing environmental conditions to maintain stability and intruder catch performance.
•   Independent Floating Thresholds (IFT)
Eliminates electrical environmental disturbances by ensuring alarm thresholds are always kept within predetermined limits.
•   Optical 3D system
Improves the detection of moving targets, ensures more precise signals can be received from the PIR and allows protection of the
area below the detector (creep zone).
Beat the burglar with tamper protection
Any sabotage attempts from the front or back will result in an alarm activation. This ensures maximum security is maintained
against accidental or malicious tampering of the system.The KX10DP-WE incorporates selectable alarm resistor values of
6K8, 5K6, 4K7 and 1K, as well as tamper values of 5K6, 4K7, 2K2 and 1K to cater for most control panels on the market.
Faster installation, less invasion, upsell opportunities & the same superior security with two-way wireless technology
•   Two-way wireless
Enforcer two-way wireless technology o ers a highly secure and reliable wireless system, using 128-bit wireless protocol encryption
and advanced jamming detection. Each wireless device on the Enforcer is both a transmitter and a receiver.
•   No wires, no fuss
As the system is fully wireless there is no need to run wiring by lifting
oorboards or moving furniture, saving you time and money.
•   One-Push-To-Learn
A feature in all Enforcer wireless devices that means learning them onto
the system can be done in seconds. A simple one button learning feature
for easy installation.
•   Signal Strength Indicators (SSI)
SSI in all Enforcer wireless devices allow them to be optimally positioned during installation, without the need to refer back to the panel.
•   Instant Two-Way Device Control (ITDC)
This enables the instant wake up and instant sleep of each wireless device on the system to preserve battery power and operability, while
maintaining security.

Features:

• 10m pet tolerant detection up to 20kg
• Secure two-way wireless
• Dual element pyro-electric sensor
• Blue Wave Technology
• Digital temperature compensation
• Sealed optics
• Signal Strength Indicator (SSI)
• One Push to Learn Button
• 868MHz transceiver FM technology
• Pyronix High Security Wireless Protocol Encryption
• Complies with EN50131-1
