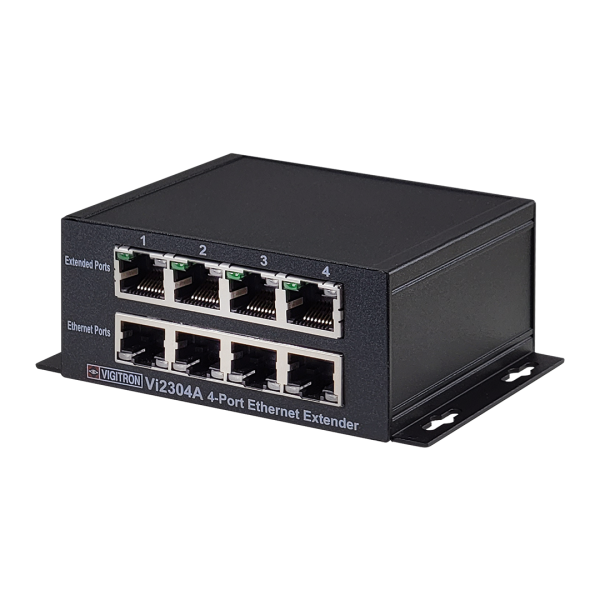

Vigitron 4-Port MaxiiCopper 4-Port Ethernet Extender over UTP - Vi2304A

Vigitron 4-Port MaxiiCopperEthernet Extender over UTP, af-at-bt 72W PoE, Requires 12VDC @ 3A PS, suggested Vi0014 - Vi2304A

Features

• Extends Ethernet beyond 328 feet (100 m) limitation up to 3,000 feet (914 m) over UTP
• Extended Pass-Through PoE (PTP™) compatible with 802.3af, at, bt up to 74W
• MegaPixel Certified (MPC™) High data rate, ideal for high bandwidth requirements of MegaPixel cameras, multiple IP cameras systems and cameras requiring Jumbo Frames
• Symmetric Bandwidth (SBW™) provides consistent upload and download with Virtual Zero Packet Loss (VZPL™)
• Type tested to RFC-2544 TCP/IP network bandwidth packet transmission standards
• Supports one-pair or four-pair UTP wires with a built-in transceiver cable connectivity tester.
• Type tested for -40°C to +75°C temperature range under conforming to NEMA-TS2
• Complies to major IEEE standards and RFC protocols for UDP, TCP/IP, HTTP/HTTPS
