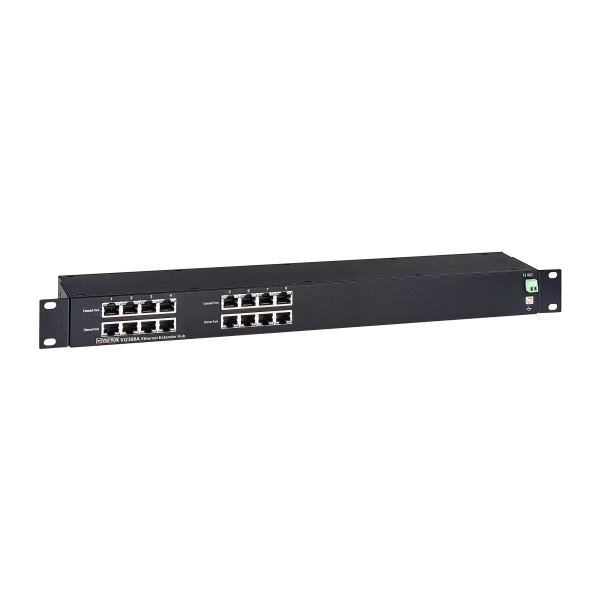

Vigitron 8-Port MaxiiCopper 8-Port Ethernet Extender over UTP - Vi2308A

Vigitron 8-Port MaxiiCopperEthernet Extender over UTP, af-at-bt 72W PoE, Requires 12VDC @ 3A PS, suggested Vi0014

Overview

Vigitron's MaxiiCopper™ Vi2308A Extender brings new performance standards to the growing need for high-speed transmission of full bandwidth Ethernet and PoE over extended distances including high power PTZ domes with heaters and blowers. Its unique Symmetric Bandwidth (SBW™) assures full bandwidth transmission is maintained over the entire operational distance for both uploads and downloads with Virtual Zero Packet Loss (VZPL™). Bandwidth assurance provides the ability to transmit multiple cameras on single camera runs with no information loss. The Vi2308A has a compact EIA 19” 1U rack design for easy installation.

Extended Pass-Through PoE (PTP™) up to 74W eliminates the need for additional cost for remote site power. Type tested under NEMA-TS2 environmental standards for -40°C to +75°C, this extender is the perfect solution for remote signal and power transmission for warehouses, parking lots, campuses, casinos, and many more. Best of all, the Vi2308A is MegaPixel Certified (MPC™), type-tested to network packet performance standards, and major camera brand compatibility tested to assure you error-free and reliable operations. The Vi2308A provides eight extended ports to meet the requirements of a wide variety of CCTV system applications.

Installation cost savings, proven performance, and major camera brand compatibility all go into making the Vigitron's MaxiiCopper™ Vi23xxA series your best choice for extended-distance Ethernet and power transmission.

Feature

• Extends Ethernet beyond 328 feet (100 m) limitation up to 3,000 feet (914 m) over UTP
• Extended Pass-Through PoE (PTP™) compatible with 802.3af, at, bt up to 74W
• MegaPixel Certified (MPC™) High data rate, ideal for high bandwidth requirements of MegaPixel cameras, multiple IP cameras systems, and cameras requiring Jumbo Frames
• Symmetric Bandwidth (SBW™) provides consistent upload and download with Virtual Zero Packet Loss (VZPL™)
• Type tested to RFC-2544 TCP/IP network bandwidth packet transmission standards
• Supports one-pair or four-pair UTP wires
• Type tested for -40°C to +75°C temperature range under conforming to NEMA-TS2
• Complies to major IEEE standards and RFC protocols for UDP, TCP/IP, HTTP/HTTPS
