4-Terminal Flush Quick fit with Multi Double Doors Contact for all Panels

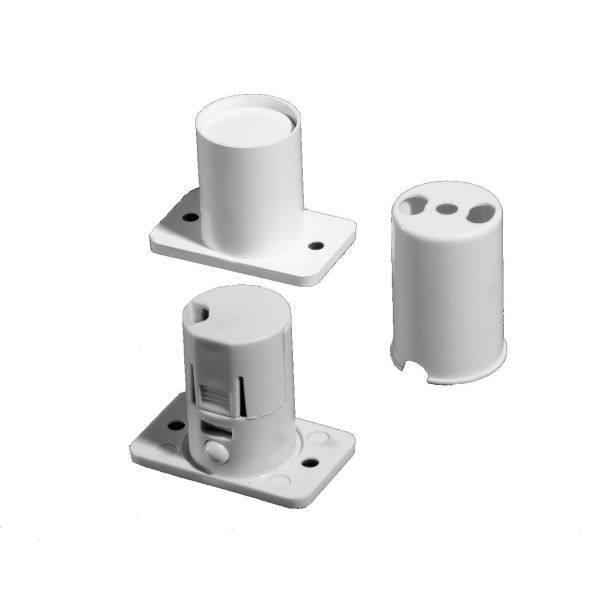

The XA41MULTI is a 4 terminal white flush contact complete with selectable EOL/Alarm resistors. It will fit a standard 20mm diameter recess, expanding to 22mm if the optional contact sheath is used. The plate fits an area of 22x35mm.

EOL Resistors: 1k, 2k2, 4k1, 4k7, 5k6, 10k.
Alm Resistors: 1k, 2k2, 4k1, 4k7, 5k6, 6k8, 10k.

These resistors cover the majority of leading panel manufacturers including Honeywell, Texecom, HKC, Risco etc.

Tamper protection is provided by a spring loaded microswitch. This will detect removal from the fitted recess. Magnetic interference detection provides Grade 3 functionality.

Fitting screws are provided with this contact for immediate installation from the package.

Operating gap is 14mm approx.

The contact can be wired without the integral resistors (Traditional / 4-Wire) if necessary.

XA41MULTI is suitable for shared zone installation with 2+ contacts.

Also available in brown – use part code XA41MULTIB.

• Operating gap: ~14mm
• Microswitch tamper protection
• Integral resistors (module selection)
• Shared zone ready
• Fits standard 20mm diameter recess (22mm with sheath)
• Rectangular plate
