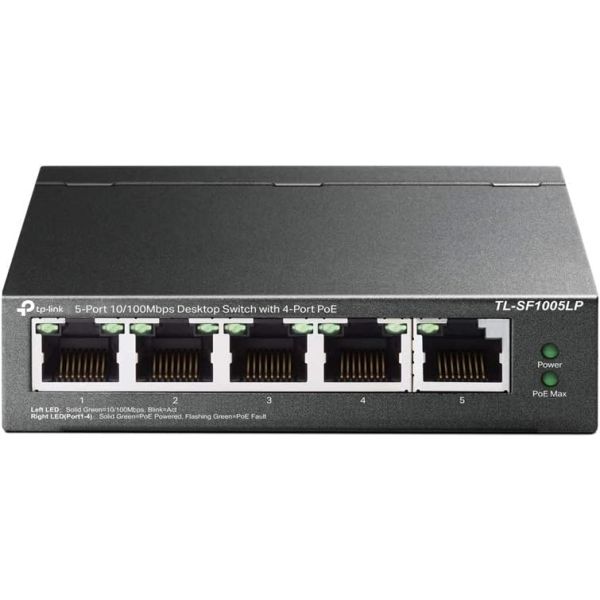

TP-Link TL-SF1005LP 5-Port 100Mbps Desktop PoE Switch with 4-Port PoE 41W UK

• 5× 10/100 Mbps RJ45 ports
• 4× PoE ports transfer data and power on individual cables
• Works with IEEE 802.3af compliant PDs
• Up to 250 m data and power transmitting range under Extend Mode^**
• Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
• Supports PoE Power up to 41 W for all PoE ports^*
• Plug and play with no configuration required

Professional Fast Ethernet Switch with 4 PoE Ports

Plug and Play, with PoE Transmission for Surveillance up to 250 m TL-SF1005LP

41 W PoE Budget*

Plug and Play

Transmission Distance up to 250 m**

One-Click Priority Mode

Intelligent Power Management

Durable Metal Casing

Dedicated 4-Port PoE Switch (41 W Budget) for Numerous Applications

Compliance with the 802.3af PoE standard supports up to 15.4 W on each PoE port. The total 41 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

• Surveillance IP Camera
• Conference Calls IP Phone
• Wi-Fi Coverage
• Access Points
• 4 PoE Ports
  Up to 15.4 W on Each Port
  Total 41 W Power Budget

Plug and Play, No Configuration Required

• 1 Plug In

• 2 Connect Devices

IP phone

IP Camera

Access Points

Internet

TL-SF1005LP

Router

• 3 Enjoy

Ideal for IP Surveillance Up to 250 m Transmissions

With extend mode, the PoE transmission distance reaches up to 250 m^**—perfect for IP Camera deployment in large areas.

Priority Video Quality Guaranteed

Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on.

Priority Mode Button

Power overload

41W

Intelligent Power Management

Intelligent power supply

Intelligent Power Management

When total power consumption exceeds 41 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

What in the Box?

• TL-SF1005LP
• Power Adapter
• Installation Guide
