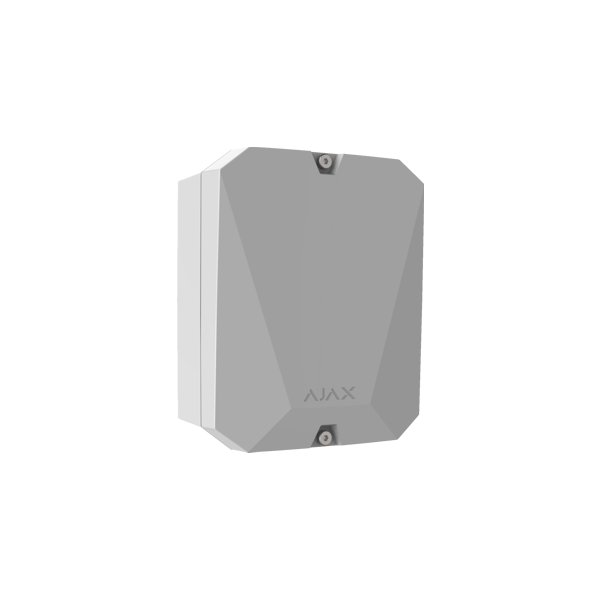

Ajax Systems Multi Transmitter Module 44950 - White

Ajax Systems Multi Transmitter 2/3 EOL - Module for integrating wired third-party devices into Ajax PD White

Wired alarm renovation

Tens of detectors and kilometers of wire can now effortlessly be transformed into a modern smartphone-controlled security system. Replacing the old security control panel, the module connects wired devices to a hub and makes them a full-fledged part of Ajax. MultiTransmitter is a step towards awareness and reliability. For a security company, it opens the possibility to configure the equipment remotely, and users get all the benefits of managing the system through an app.

More Ajax features

IR barriers, household gas, temperature, liquid level detectors, and much more — with MultiTransmitter, these devices are ready to expand the Ajax areas of use. And wired connectivity and support of international security industry standards ensure full compatibility.

The Ajax wireless transmitter is connected to the alarm control panel (Hub, Hub Plus, Hub 2, Hub 2 Plus) via the Jeweler radio protocol. The alarm signal from the sensor connected by NC / NO contacts (supports contact types NO, NC (without R), EOL (NC with R), EOL (NO with R) is transmitted directly to the intelligent control panel.

New features of old devices

MultiTransmitter has 18 wired zones, each of which can be configured in the Ajax app. The detectors connected to the zones can be active 24/7, operate with entering or exiting delay, activate sirens if necessary, and participate in automation scenarios. With MultiTransmitter, the old alarm system becomes part of a secure and smart home.

Data-rich alarms

With MultiTransmitter, you can specify the type of alarm and a room for each wired device. This makes notifications more informative — you know not just what happened but where. This information is displayed using push notification, SMS, and is also sent to the security company's monitoring station under an appropriate code. A total of five types of alarms are available: intrusion, fire, medical assistance, panic button, gas alarm.

Radio communication without reliability compromises

MultiTransmitter communicates with a hub via an encrypted Jeweller radio protocol. This is a TDMA technology developed by Ajax Systems for uninterrupted communication with devices. Jeweller detects jamming attempts, switches to the backup frequency in case of interference, and allows Ajax wireless devices to run on battery power for years.

Security without barriers

When using ReX range extenders, Ajax security system's radio network can cover up to 35 km2. But if some rooms are impermeable for radio waves, connecting wired devices via MultiTransmitter is the best solution. The length of wires can reach 400 meters.

Protected against sabotage

MultiTransmitter will inform you instantly if the connected devices have been interrupted with power failure, disconnection of the signal cable, or tampering. Electricity loss at the site will not be a problem either — the backup battery can provide power to devices for up to 4 days. MultiTransmitter body itself is equipped with two tampers that respond to removal of the integration module from the mount and removal of the lid.
