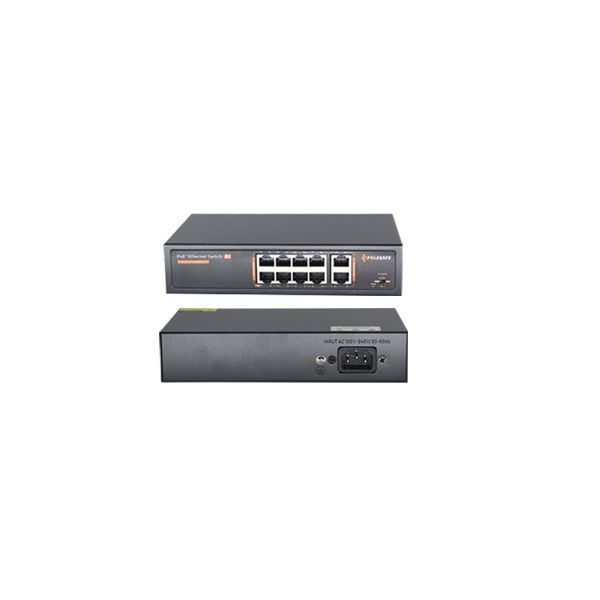

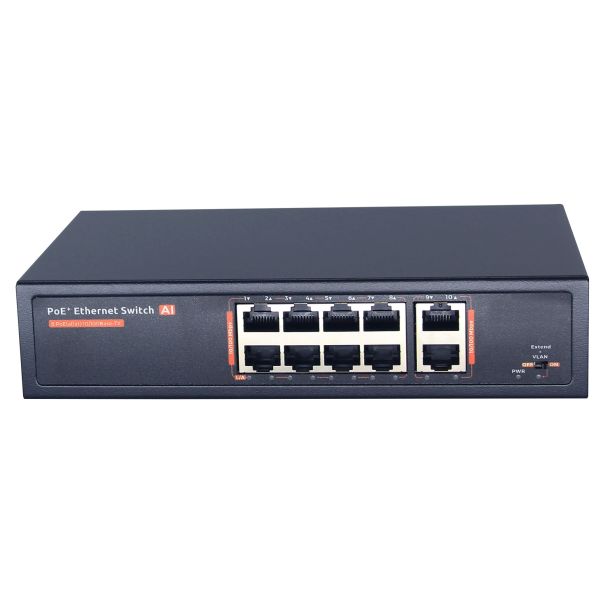

AVA 120W 8-Port 100Mbps PoE CCTV Switch 100m Surge Protection 2KV Plug & Play

AVA 120W 8-Port 100Mbps PoE CCTV Switch 100m Surge Protection 24V Plug & Play

• Comply with IEEE802.3, IEEE802.3u, IEEE802.3af/at standards
• Support IEEE802.3x full-duplex flow control; support Auto MDI/MDIX
• 8-Port support 48V-56VDC power to PoE powered devices
• Provide 15.4W or 30W power to powered devices
• 120-watts PoE budget
• Built-in 53VDC/1.85A switching power supply
• Extra 2-Port 10/100Mbps UPLINK RJ-45
• PoE data & power transmission distance up to 100 meters
• Port based VLAN for Enhancing Security
• Backplane Bandwidth: 2.0Gbps
• Excellent anti-thunder, anti-static and anti-interference ability
• Surge Protection: 4KV
• Easy and convenient to use, plug & play, no need to configure
• Galvanized housing for stable and durable working life

Support Auto MDI/MDIX

It supports standard Auto-MDI/MDI-X that can detect the type of connection to any Ethernet device without requiring special straight or crossover cables.

The maximum extended distance up to 250 meters

When the VLAN mode is enabled, the data cannot be forwarded among DOWNLINK RJ-45 ports, but DOWNLINK ports and UPLINK RJ-45 port can communicate with each other. The bandwidth of DOWNLINK RJ-45 port is forced to 10Mbps mode to adapt to long distance transmission of max 250meters.

Save your cost and time

With data and power over Ethernet formed one unit, the FS-S0008EP-2E reduces cabling requirements and eliminates the need for dedicated electrical outlets on the wall, ceiling or any unreachable place. A wire that carries both data and power can lower the installation costs, simplify the installation effort and eliminate the need for electricians or extension cords.

Cascade connection to better control

your surveillance system

Cascade connection to better control your surveillance system

It provides both 802.3af/at PoE functions along with 8 x 10/100Base-TX ports featuring 15.4-watt 802.3af/30-watt 802.3at PoE in RJ-45 interfaces and extra 2 x 10/100Mbps UPLINK RJ-45 ports to keep a cascade connection with another switch or NVR as a kit for the administrators to centrally and efficiently manage the surveillance system in the local LAN and the remote site via Internet.
