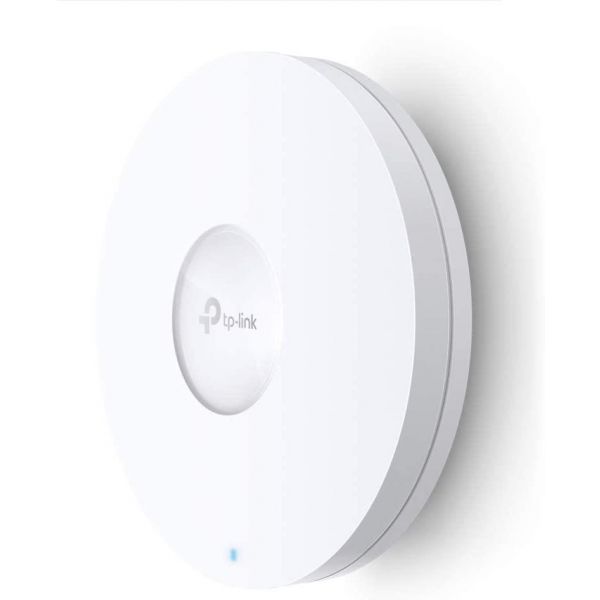

TP-Link AX3600 Ceiling Mount Dual-Band Wi-Fi 6 Access Point

• Ultra-Fast Wi-Fi 6 Speeds: Simultaneous 1148 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 3550 Mbps Wi-Fi speeds.^†
• High-Density Connectivity: 4× increased capacity to connect more devices simultaneously.^‡
• Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)^§, Centralized Cloud Management, and Intelligent Monitoring.
• Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
• 2.5G Port: A 2.5 Gbps Ethernet port boosts total internet throughput.
• Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.^△
• PoE+ Support: Supports Power over Ethernet (802.3at) for convenient deployment and installation.
• Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.

Ultra-High Performing AX3600 Enterprise Wireless for High-Density Environments Omada EAP660 HD
Learn more about Wi-Fi 6

High-Density Connectivity with 4× Increased Capacity

OFDMA* and Uplink & Downlink MU-MIMO** increase network capacity by up to 4× versus Wi-Fi 5 (802.11ac) in high-density environments to connect more devices simultaneously‡. Leverage multi-user capabilities and upgrade your business like never before.

• Hospitality High Quality and Full Coverage Wi-Fi
• Restaurant Full Wi-Fi Coverage in High-Density Environment
• Shopping Mall Social Marketing for O2O
• Meeting Room Wireless and Wired Connections for dense usage
• Railway Station High-Density Wi-Fi

Blazing Fast Speed with 8 Spatial Streams

The Omada Wi-Fi 6 Access Point features the latest 802.11ax technologies like 1024 QAM and Long OFDM Symbol, which allows the EAP to boost overall speeds up to 3550 Mbps (2402 Mbps on a 5 GHz band and 1148 Mbps on a 2.4 GHz band)†. With 8 spatial streams, multi-user throughput is incredibly increased to drive more applications.
1024 QAM

25% more data
encoded at one time
Long OFDM Symbol

11% faster speed

5GHz
4 Stream 802.11ac 1733Mbps
4 Stream 802.11ax 2402Mbps

2.4GHz
4 Stream 802.11ac 600Mbps
4 Stream 802.11ac 1148Mbps

Omada SDN—Smarter Cloud Solution for Business Networking

Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.

Hassle-Free Centralized Cloud Management:

100% centralized cloud management of whole network from different sites—all controlled from a single interface anywhere, anytime.

Optimized Wired Performance with 2.5 GE PoE+ Port

Armed with a 2.5 Gigabit Ethernet Port, the EAP660 HD delivers exceptional multi-gigabit performance to support the insatiable demand for better and faster Wi-Fi. Compatibility with standard 802.3at PoE+ is ideal for flexible deployment.

2.5 GE PoE+ Port

Seamless Roaming

802.11k/v roaming switches clients automatically to the AP with the optimal signal with a seamless transition when moving.△ This allows sensitive applications like VoIP and video conferences to go uninterrupted.

Boost Network Efficiency in All Aspects
With Rich Advanced Features

Band Steering

Automatically moves dual band devices onto the wider 5GHz band for faster connections.

Load Balance

ensures large numbers of users have smooth network experiences in high-density business networks

Airtime Fairness

Increases average network throughput in heavily congested environments

Easy to Mount with Refined Industrial Design

1 push up 2 simply rotate to lock

Secure Guest Network with Facebook Wi-Fi and SMS Login

Guest Network provides elevated secure access to guests sharing your Wi-Fi network, with captive portal helping maintain only authorized guests to use the network. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and power up your business.

What in the Box?
• EAP660 HD
• Power Adapter
• Ceiling/Wall Mounting Kits
• Installation Guide
