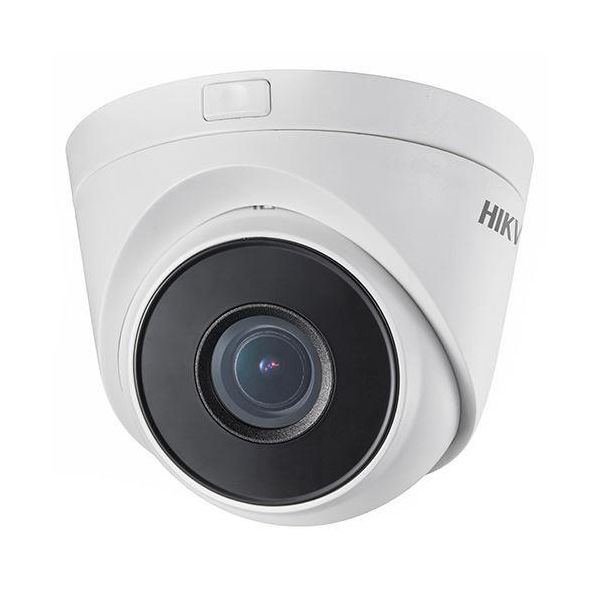

Hikvision Digital Technology DS-2CD1H21WD-IZ 2.0 MP CMOS Vari-Focal Motorized Network Turret Camera

Image Sensor

1/2.8" progressive scan CMOS

Min. Illumination

Color: 0.01Lux @(F1.2,AGC ON),0 Lux with IR

Shutter Speed

1/3s to 1/100,000 s, support slow shutter

Lens

2.8 mm to 12 mm @F1.4, horizontal field of   view: 90°   to 35°

Lens Mount

Φ14

Day &Night

IR cut filter with auto switch

3-Axis Adjustment

Pan: 0° to 360°, tilt:   0°to 65°, rotation:0° to 360°

DNR (Digital Noise Reduction)

3D DNR

WDR (Wide Dynamic Range)

120 dB

Compression Standard

Video Compression

Main stream: H.264+/H.264

Sub stream: H.264/MJPEG

H.264 Type

Baseline profile/Main profile

Video Bit Rate

32 Kbps to8 Mbps


Max. Resolution

1920 × 1080

Main Stream

Max. Frame Rate

50Hz: 25fps@(1920 × 1080, 1280 × 960, 1280   × 720)

60Hz: 30fps@(1920 ×1080, 1280 × 960, 1280 ×   720)

Sub-stream

Max. Frame Rate

50Hz: 25fps@(704 × 576, 640 × 480, 352 × 288,   320 × 240)

60Hz:30fps@(704 × 480, 640 × 480, 352 × 240,   320 × 240)

Image Settings

Brightness, saturation, contrast, sharpness   are adjustable via web browser or client software

Day/Night Switch

Support auto, scheduled

Others

Mirror, BLC (area configurable), region of interest   (support 1 fixed region)

Network

Network Storage

NAS (NFS,SMB/CIFS)

Detections

Motion detection

Alarms

Video tampering, network disconnected, IP address   conflicted

Protocols

TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,   NTP,UPnP,SMTP,IGMP,802.1X,QoS,IPv6, Bonjour

Standard

ONVIF(PROFILE S,PROFILE G),PSIA,CGI,ISAPI

General Function

One-key reset, anti-flicker,heartbeat, mirror, password protection, privacy   mask, watermark, IP address filter

Interface

Communication Interface

1 RJ45 10M/100M self-adaptive   Ethernet port

General

Operating Conditions

-30 °C to60°C (-22 °F to140°F), humidity: 95% or less (non-condensing)

Power Supply

12VDC± 25%, PoE (802.3af)

Power Consumption

Max. 8.5 W/11 W (PoE)

Ingress Protection

IP 67

IR Range

20 m to 30 m

Dimensions

Φ 130.5 mm ×102.4 mm (5.14"× 4.03")

Weight

485 g (1.07 lb.)
