Multi-Purpose Enhanced Network Cable Tester & Scanner Lines Scan Tracker

Multi-Purpose Enhanced Network Cable Tester & Scanner Lines Scan Tracker

Multi-Purpose Tone, Probe and Tester Kit RJ45 RJ11 for Network and Telephone cables, for tracking the wires of multipair cables

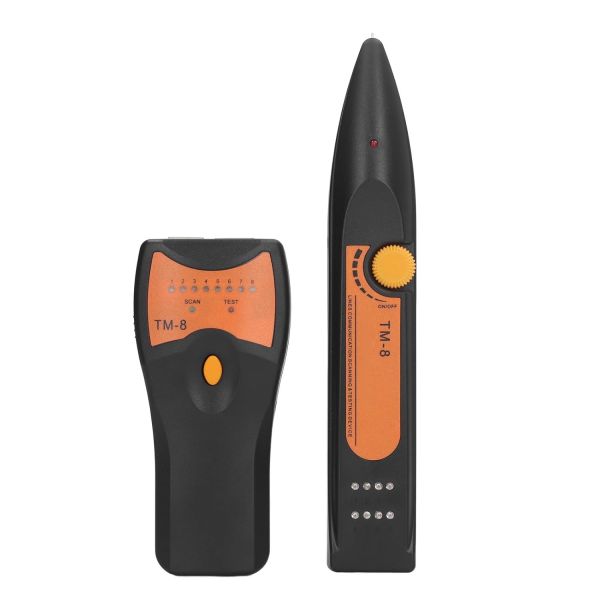

This Multi-function Network Cable Line Tester, Tracker and Tone Generator is designed to identify and trace wires or cables within a group without damaging the insulation. For telephone lines, it can identify the state of the line, it is very convenient for use in telephone line installation, debugging and maintenance. It really is a professional & safe tool.

When the tone generator is connected to a cable with a connector, or with aligator clip, it generates a tone, which makes it easy to find the other end using the tone receiver – even in big bundles of cables. When you place the receiver near the connector of the cable, it starts generating tone, and it amplifies as you get closer to the cable you are searching for.

Features:

• Color: Black
• Rapidly trace the target wire among plenty of wires
• Check continuity of the cables or wires
• Track the cables and diagnose the break point
• Receive the tone signal on the cables or wires (telephone line)
• Identify the state in the working telephone line (clear, ringing, busy)
• Sound and LED signal indicators
• Adjustable volume of sound signal
• Power supply: 2x DC 9V battery (included)
• Working current: Tester: ≤20mA; Receiver: ≤150mA
• Signal transfer mode: Digital signal
• Signal output level: 8Vp-p
• Signal transfer distance: ≥3Km
• Dimension: Transmitter: 130x60x33mm; Receiver: 210x35x25mm

What in the Box?

•  1 x Cable Emitter/Transmitter
•  1 x Cable Receiver/Tracker
•  2 x 6F22 9V Batteries
•  1 x RJ11 Cable
•  1 x RJ45 Cable
•  1 x Earphone
•  1 x Cable with Crocodile Clamp
•  1 x High quality black carrying case, provides secure protection
•  1 x Cable with crocodile clamp
•  1 x Earphone
•  1 x Instruction manual
