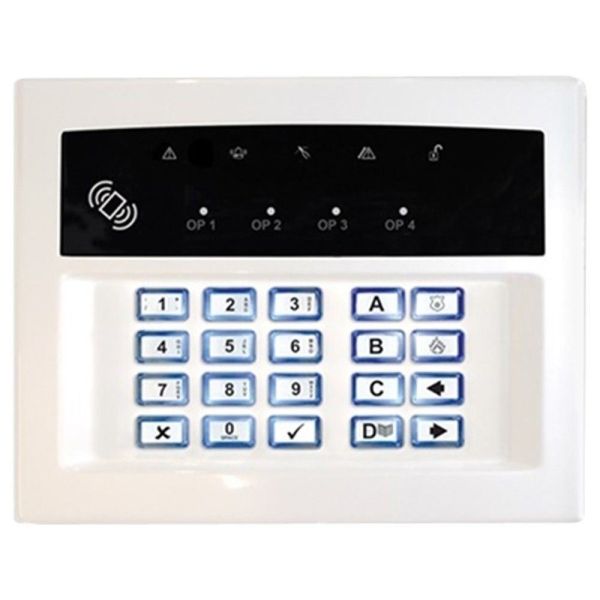

Pyronix LEDRKP-WE Wireless Remote Arming Keypad With Proximity Reader

• Set and unset the system

• Trigger home automation outputs

• New stylish plastics

• Wireless setting and unsetting of the control panel

• Connect up to four Wireless Arming Stations

• Optional flush backbox

• Backlight enable and disable

• Tag enable and disable

• Local LED status indication

• Generates chime and alarm tones

Convenient, wireless and easy to use

The wireless arming keypad comes complete with system status indicators, allowing you to see the status of your system without having to go to the panel. The LEDRKP/WHITE-WE has an integrated proximity tag reader, making setting and unsetting the system even easier.

Keypad controlled outputs

Wired automation outputs can be triggered on the panel, for example opening electrical gates, lighting, garage doors.

Signal strength indicator

One of the key advantages of implementing of the SSI technology is to allow the installer to view the wireless transmission signal strength on both the control panel and wireless devices in real time.

Compatibility

LEDRKP/WHITE-WE is only compatible with Enforcer: V9.5 and above (Non-APP), V2.1 and above (APP), Enforcer v10 and above, and EURO: V9.5 and above (Non-APP), V2.1 and above (APP), and EURO v10 and above.

Entry and exit tones

Clear, audible tones give confirmation of entry to, or exit from the property.

Instant two way device control (ITDC)

The ITDC technology enables instant wake up and instant sleep of each device on the system, allowing continuous communication between the control panel and wireless devices whilst preserving battery power. This technology not only provides installers with total control of each device, but also gives users peace of mind that they have a reliable and secure wireless system:

• Ensuring that all wireless detection devices know when the system is armed and disarmed
• Ensuring that they are awake as soon as the system is armed

Enforcer two-way wireless technology with high security encryption

The two-way wireless protocol has been developed by Pyronix to ensure that the communication between all wireless system components is protected on a very high security level. The protocol uses the 128 bit Pyronix advanced encryption.

With new plastics, the LEDRKP/WHITE-WE is consistently stylish with the current surface and flush mount wired keypads. If flush mounting is desired, an optional backbox is available separately to achieve the perfect finish.

3V lithium battery included

Battery included for extra convenience.
