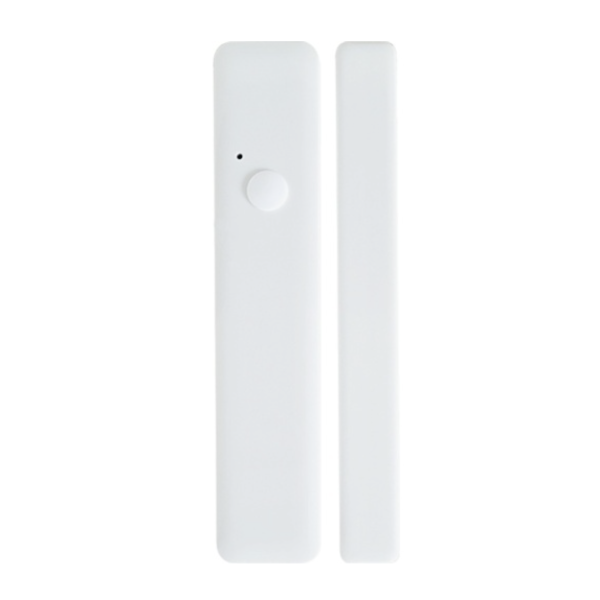

Pyronix MC1Z2/SHOCK-WE Wireless Magnetic Contact with Shock and Two Inputs

The MC1Z2/SHOCK-WE is our new, wireless magnetic contact and shock sensor with two zone inputs for flexible set-up. Designed for internal use, the Grade 2 device offers a central magnetic reed contact, an accelerometer shock sensor, as well as universal transmitter functionality with two zone inputs and one tamper input, all in one housing.

Key Features

• Compatible with Enforcer or EURO (with a ZEM)
• Universal transmitter
• Enhanced installation and calibration

Our all-in-one shock, contact and universal transmitter

The MC1Z2/SHOCK-WE is our new, wireless magnetic contact and shock sensor with two zone inputs for flexible set-up.

Designed for internal use, the Grade 2 device offers a magnetic reed contact, an accelerometer shock sensor, as well as universal transmitter functionality with two zone inputs and one tamper input, all in one housing.

The new device delivers Enforcer and EURO (with a ZEM) compatibility, enhanced installation and calibration, and an aesthetically pleasing design; with options to purchase in white, brown and anthracite grey.

Universal transmitter

The device features two zone and one tamper input for adding devices via double pole wiring. The MC1Z2/SHOCK-WE is compatible with any device that has a volt free relay that switches state when the device is triggered or tampered. External devices could include anything from water leak sensors to wired alarm devices, like a wired roller shutter contact or panic alarm buttons.

Auto-orientation

With the MC1Z2/SHOCK-WE, there’s no longer a detection chamber to calibrate in the ‘up’ position, instead, the orientation of the device is automatic, allowing it to be installed at any angle.

Central reed location

The central location of the reed optimises installation by removing any chance of mispositioning the contact magnet when fitting. To make things even easier, and to further optimise installation, the device comes with diagnostic LEDs to assist in setting up the magnet gap.

Enhanced installation and calibration

The MC1Z2/SHOCK-WE PCB is encased in the front of the sensor, along with the batteries, so there’s no need to open the device to configure the PCB on install and there’s nothing to unscrew for battery replacement, making installation and maintenance easy!

There’s a pinhole button on the front of the device for calibrating the shock sensitivity with ease, too. Holding the button cycles through increments 1 to 5, with 1 offering the least sensitivity and 5 offering the most.

300m Transmission range

The high sensitivity receiver allows a wireless signal range of up to 300m in open space, eliminating the need for repeaters and reducing installation costs.
