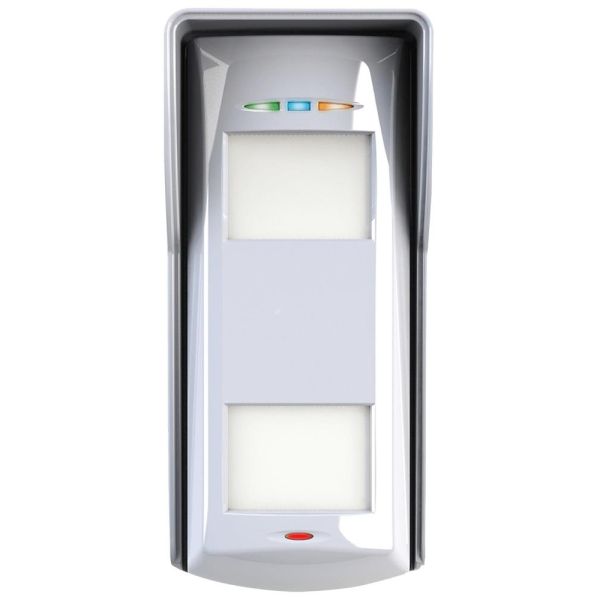

Pyronix XDL12TTAM3 Tri Anti-Mask PIR 12m External Detector

Poduct Features

• Tri-Signal Detection
• Dual-Vision Pet Immune
• Anti-Masking
• Anti-Blocking
• Anti-Sway Analytics
• Blue Wave Technology (BWT)
• Multi-configurations
• Weatherproof
• Heavy duty design
• Adaptable coverage
• Flexible installation
• Easy setup

Low mount, pet-tolerant external detector, featuring Grade 3 and 4 technologies

Consisting of two independent passive infrared (PIR) sensors and one microwave sensor in one common housing, Tri-Technology (TT) utilises Tri-Signal Detection Logic whereby to identify the presence of an intruder, all three sensors need to be activated sequentially in quick succession to create an alarm.

Protect while allowing for pets with Dual-Vision Pet Immune

The two PIRs of the XDL12TT-AM have a dedicated volumetric field of view. The top PIR detects outwards and up, while the bottom PIR detects outwards and down, without either crossing the central horizontal place between them. This setup of non-overlapping PIR sensors alongside Tri-Signal Detection Logic, delivers highly secure sequential detection and increases its tolerance to pet immunity.

Ultimate outdoor performance with Anti-Sway Analytics

An advanced filter that allows the XDL12TT-AM to distinguish between the movement of trees and plants from that of an intruder. It is designed to maintain optimum performance and reduce false alarms in environments with windy weather conditions and swaying vegetation.

Arming safely and beat the burglar with Anti-Interference Technology

• Anti-Masking
  This Patented Grade 3 Technology provides superior protection against any attempts to mask any of the three technologies within the detector from a variety of materials, such as: cardboard, duct tape, sprays, lacquers or aluminium foil.
• Anti-Blocking
  This Grade 4 Technology prevents the system from being armed if there is anything blocking the field of view of any of the sensors within the detector. This would need to be removed before the system will arm.

Protected whatever the weather with IP55 rating

The XDL12TT-AM boasts IP55 weatherproof rating, which means that whatever the weather, the brand-new detector is durable and reliable with protection from dust ingress, high density rain, snow and water jets from any direction. To ensure this, the rubber gasket on the lens and the foam gasket on the PIR sensor seal the detector against all weather conditions and humidity.

A key weatherproof feature of the XD is its tolerance to ultraviolet light. The lenses and housing are manufactured with materials of the highest standard and are also coated with a heavy duty ultraviolet filter, ensuring that that the XD’s performance is not compromised.

Designed for maximum convenience with easy installation

• Walk-test buzzer
• Adjustable PIR/MW range
• Status LED indication
• Pre-drilled cable entries
• Selectable EOL resistors
