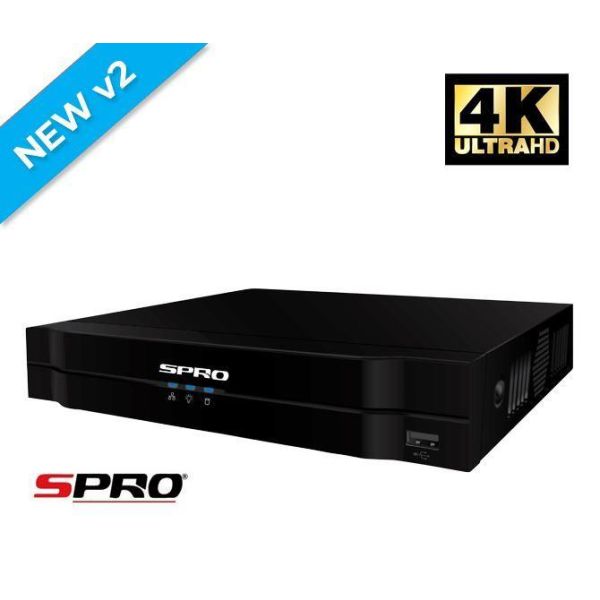

Spro DHDVR12-B3 8+4 Channel 4K 4MP 5 IN 1 Digital Video Recorder -Black 4TB

12 channel recording (8 channel BNC + 4 channel IP)
- H264+/H.264 video compression
- Up to 4K(8MP) recording
- 4K@7fps, 4MP@15fps, 1080P@25fps
- Supports up to 8MP on extra IP channels
- Supports “IP Audio over CAT5e” on extra IP channels
- Supports alarm over co-ax cable(compatible cameras required)
- Supports audio over co-ax cable(compatible cameras required)
- PTZ control over co-ax cable
- P2P (no port forwarding required)
- Smart phone/Windows/Apple Mac viewing
- Intelligent feature : Facial & Tripwire detection (BNC channel only)
- Audio : 1 in & 1 out
- ONVIF 2.4
- 4K HDMI (3840x2160) & VGA

The all new SPRO B3 12 Channel DVR can record at up to 4K resolution on both the CVI format or on IP. Not sure what cameras you have? The B3 models can also record AHD and TVI formats at Full HD resolution (1080P) or even standard analogue resolutions if you have an older camera.

This recorder has 8 BNC ports for HD CCTV cameras and can accept another 4 IP CCTV cameras if they are on the same network as the DVR.

Connecting cameras couldn't be simpler, just connect your camera to the back of the unit, ensure there is also power going into the camera and a picture should appear. If you're looking to connect an IP camera on the additional cameras simply add the DVR and cameras onto a local network and search for them on the menu screen. You can then click the 'add' button to add these cameras to the system.

Each unit also has a simple system to connect to a mobile app; just scan a QR code on your mobile device to install the app and then scan another QR Code to copy all the settings to the app. Once connected you can view your cameras whenever you have an internet connection, even if you are abroad. There is even a dedicated PC or Mac software available that can be used to view your CCTV either live or recorded footage.

Security in the palm of your hand
Accessing your CCTV system remotely couldn’t be easier. Simply download and install our free App and gain access to live viewing or recorded footage from anywhere where there’s a network connection.*
*CCTV system must be connected to the internet Download Icons

• No router configuration required for phone/PC viewing**
• No need to read a 1,000 page instruction manual to setup
• No need to pay extra for the mobile app

**Applies to most modern routers

Motion detection alert

Have your CCTV system monitor your home and workplace and contact you when there’s movement. Get an image sent by email whenever a motion detected event is triggered. Monitor only specific areas for movement or anywhere within the picture.

Scheduled motion detection

In an age where image quality is important storage space plays a vital part in how much can be stored. Rather than recording a static room or view you can set your CCTV system to only record when it detects movement. You can even set your schedule to save footage up to 5 seconds before the motion is detected.

Dual Screen Output Black Line

This DVR comes with both VGA and HDMI outputs so that you can view on either a VGA monitor or through a HDMI monitor in full HD. You can even use both ports at the same time and view on different screens in different rooms

The DHDVR12-B3 is compatible with the EasyViewer software allowing you to view live or playback recorded footage from your DVR.
