TP-LINK’s AV500 Nano Powerline Adapter Starter Kit TL-PA4010KIT turns your existing powerline into a high speed network with no need for new wires or drilling. No configuration is required, simply plug your adapters into your power sockets and you can establish networking infrastructure in a flash. With a speed of up to 500Mbps, TL-PA4010KIT transmits HD streaming and even 3D movies to every room, making it a great choice for an easy to build multimedia entertainment network.
With its new ultra-compact housing design, TL-PA4010KIT is much smaller than TP-LINK’s legacy mini 500Mbps Powerline Products. At just 28.5mm thick, it nearly blends completely in front of any power outlet.
With advanced HomePlug AV technology, TL-PA4010KIT provides users with stable, high-speed data transfer rates of up to 500Mbps on a line length of up to 300 meters. Together with its built-in AES encryption, the TL-PA4010KIT is a great choice for a whole home solution to connect all network compatible devices--from computers and game consoles to set-top boxes for IPTV to printers and NAS hard drives.
Up to 500Mbps powerline speed ensures smooth HD streaming
*Actual data will vary because of the network conditions and environmental factors.
Quality of Service (QoS) function prioritizes the bandwidth requirements of data traffic. Users can choose which type of traffic they will use -- Internet, Online Game, and Audio or Video, Voice over IP, and the QoS functions will guarantee clear, instant reproduction of that application, even when other applications are running on the network at the same time.
*Actual data will vary due to the network conditions and environmental factors.
Connectivity | |
---|---|
Connectivity technology | Wired |
Host interface | PowerPlug |
Interface | Ethernet |
Internal | N |
Ethernet LAN (RJ-45) ports quantity | 1 |
Bandwidth | |
Data transfer rate (max) | 500 Mbit/s |
Supported data transfer rates | 10/100 Mbit/s |
Networking | |
Chipset | - |
Ethernet LAN connection | Y |
Cabling technology | 10/100BaseT(X) |
Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
Modulation | OFDM |
Wireless LAN features | |
Maximum indoor range | 300 m |
Energy management | |
Power consumption (typical) | 2.1 W |
Colour | |
Colour of product | White |
Operating system/software | |
Windows operating systems supported | Y |
Mac operating systems supported | Y |
Linux operating systems supported | Y |
Weight & dimensions | |
Width | 93 mm |
Depth | 56 mm |
Height | 30 mm |
Illumination/Alarms | |
LED indicators | PLC, Power |
Power LED | Y |
Certificates | |
Certification | CE, FCC, RoHS |
Security | |
Security algorithms supported | 128-bit AES |
Environmental conditions | |
Operating temperature range (T-T) | 0 - 40 °C |
Storage temperature range (T-T) | 40 - 70 °C |
Operating relative humidity range | 10 - 90 % |
Storage relative humidity range | 5 - 90 % |
Packaging data | |
Package dimensions (WxDxH) | 93 x 56 x 30 mm |
Packaging content | |
Cables included | LAN (RJ-45) |
Quick start guide | Y |
Special features | |
On-chip QoS and Traffic Management | Y |
TP-LINK’s TL-WPA4220 extends your Internet connection to every room of the house through your home’s existing electrical circuitry. The TL-WPA4220 features a Wi-Fi Clone Button enabling Super Range Extension, which means it can automatically copy the SSID and Password of your router. In this way, TL-WPA4220 simplifies your Wi-Fi configuration and allows for seamless roaming within your home network.
With a Wi-Fi Clone Button enabling Super Range Extension, the TL-WPA4220 can automatically copy the wireless network name (SSID) and Password of your router at the push of a button. After the pressing the button, you can place the powerline adapter anywhere you want wired or wireless access and enjoy seamless networking across your entire home or office.
With advanced HomePlug AV technology, TL-WPA4220 provides you with stable, high-speed data transfer rates of up to 500Mbps on a line length of up to 300 meters. It is a great choice for a whole home solution to connect all network compatible devices--from computers, game consoles to set-top boxes for IPTV to printers and NAS hard drives.
With wireless speeds of up to 300Mbps, you can effortlessly extend your WiFi network via the existing powerline and broadcast a wireless signal to share with all your WiFi enabled devices in another area of your home or office.
You can set up a hassle-free Powerline network within minutes with TP-LINK’s powerline adapters, just plug in and play. Also, the adapters’ “Pair” buttons can be utilized for securing or managing multiple powerline adapters in your home powerline network.
Ports & interfaces | |
---|---|
Connectivity technology | Wired |
Host interface | PowerPlug |
Interface | 2*10/100Mbps Ethernet Port |
Internal | N |
Ethernet LAN (RJ-45) ports quantity | 4 |
Bandwidth | |
Data transfer rate (max) | 500 Mbit/s & wireless 300 Mbit/s |
Supported data transfer rates | 10/100/500 Mbit/s |
Networking | |
Ethernet LAN connection | Yes |
Cabling technology | 10/100BaseT(X) |
Networking standards | IEEE 802.3, IEEE 802.3u |
Modulation | OFDM |
Copper ethernet cabling technology | 100BASE-T, 100BASE-TX, 10BASE-T |
Technical details | |
Colour of product | White |
Operating temperature range (T-T) | 32 - 104 °F |
Compatible memory cards | N |
Energy management | |
Power consumption (typical) | 3 W |
Operating system/software | |
Windows operating systems supported | Yes |
Mac operating systems supported | Yes |
Linux operating systems supported | Yes |
Weight & dimensions | |
Width | 56 mm |
Depth | 30 mm |
Height | 93 mm |
Weight | 0.103 kg |
Illumination/Alarms | |
LED indicators | LAN, Power, Y |
Power LED | Yes |
Certificates | |
Certification | CE, FCC |
RoHS compliance | Yes |
System requirements | |
Compatibility | PC&Notebook |
Mac compatibility | Yes |
Security | |
Security algorithms supported | 128-bit AES |
Operational conditions | |
Operating temperature range (T-T) | 0 - 40 °C |
Storage temperature range (T-T) | -40 - 70 °C |
Operating relative humidity range | 10 - 90 % |
Storage relative humidity range | 5 - 90 % |
Packaging content | |
Cables included | LAN (RJ-45) |
Manual | Yes |
Quick start guide | Yes |
Other features | |
Minimum system requirements | PowerPlug |
Compatible operating systems | Windows 2000\nWindows XP\nWindows 2003\nWindows Vista\nWindows 7,8\nMac OS\nLinux |
Indoor range What in The Box? | 300m Powerline Ethernet Adapter TL-WPA4220 |
What in the Box?
Manufacturer | TP-Link |
---|---|
Condition | NEW |

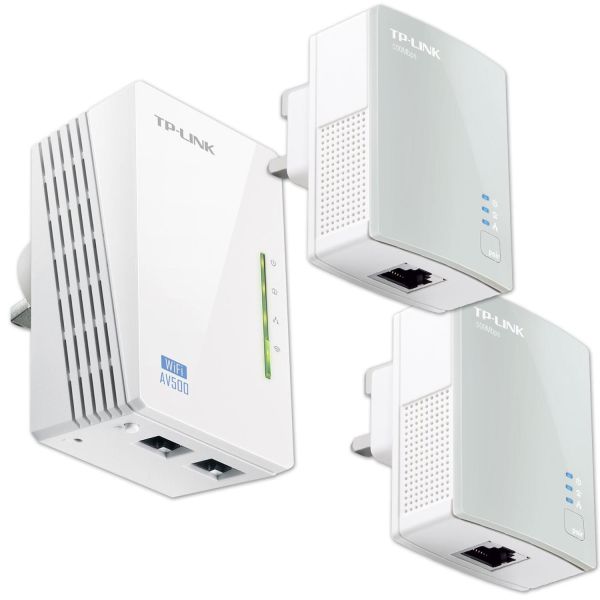

Product Name | TP-LINK TP Link TL PA4010 500Mbps nano Powerline Ethernet Gaming adapter Home (TL-PA4010 x 2 , TL-WPA4220 X |
SKU | TL-PA4010KIT-TL-WPA4220-REFURBISHED |
EAN | 4054318062638 |
