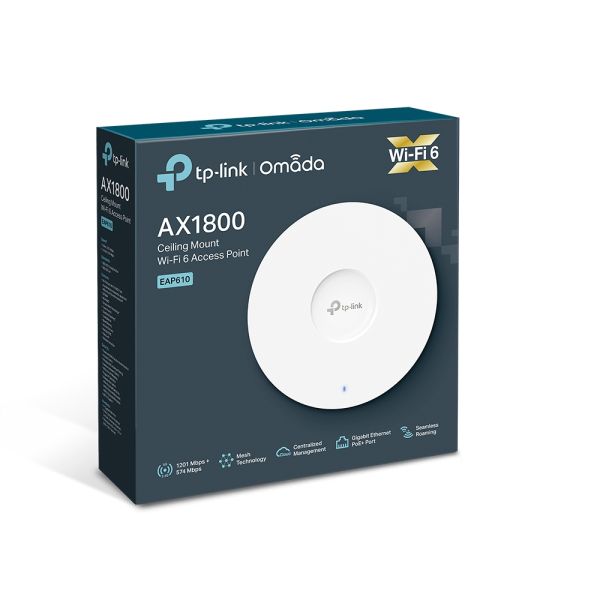

TP-Link AX1800 Wi-Fi 6 Dual Band Gigabit Ceiling Mount Access Point Omada Mesh

• Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.^†
• High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.
• Centralized Cloud Management: Manage the whole network locally or from the cloud via web UI or Omada app.
• Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.^§
• Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.^§
• PoE+ Powered: Supports both Power over Ethernet (802.3at) and DC power supply for flexible installations.
• Secure Guest Network: Along with multiple authentication o

Easily Upgrade to Business WiFi 6 Network

AX1800 Ceiling Mount WiFi 6 Access Point

•  AX1800 WiFi 6 Speed 574 Mbps on 2.4 GHz + 1201 Mbps on 5 GHz
• High-Efficiency WiFi 6
• More connected devices can enjoy faster speeds
• Centralized Cloud Management
• Manage the whole network locally or from the cloud
• Seamless Roaming
• Uninterrupted streaming when moving between Aps
• Omada Mesh Technology
• More flexible and convenient wireless deployment
• PoE+ Powered
• Supports both DC and 802.3at PoE+ for flexible installations

Upgrade to WiFi 6, Power up Your Business

WiFi 6 brings faster speeds, less lag, and higher capacity.

Superior WiFi 6 Speeds

Higher Efficiency for More Devices

Superior WiFi 6 Speeds

Upgrade to WiFi 6 with speeds up to 1775 Mbps brings 50% faster speeds than WiFi 5.^† Every application feels more fluid with drastically improved Wi-Fi speeds.^‡

•  1024 QAM

25% more data encoded at one time

•  Long OFDM Symbol

11% faster speed

2 Stream WiFi 5

2 Stream WiFi 6

5GHz

40% Faster

867 Mbps

1201 Mbps

2 Stream WiFi 5

2 Stream WiFi 6

2.4GHz

90% Faster

300 Mbps

574 Mbps

Seamless Integration into Omada SDN Platform

The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface.

Hardware or Software Controllers

Centralized Cloud Management

Intelligent Monitoring

Internet

Cloud Access

WiFi 6 Ceiling Mount AP EAP610

Wall Plate AP

Outdoor AP

JetStream PoE Switch

Omada VPN Router

Web Browser

Omada App

Omada Hardware Controller

Or

Omada Software Controller

Easy Deployment & Higher Performance by Omada Mesh**

Easy Pairing, Less Wiring

With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.

Traditional Wired Networking

Mesh Wireless Networking

Optimized Network Performance

Intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted.

•  Intelligent Self-Organization
• Self-Healing

Always Stay Smooth with Fast Roaming

Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.^§

Easy to Mount with Refined Industrial Design

• 1
• Push up
• 2
• Simply rotate to lock

Ceiling /Wall Mounting (Kits included)

Boosted Network Security and Efficiency

Security

•  Secure Guest Network with Up to 16 SSIDs

Guest network access provides enhanced security to guests. Different SSIDs also enable flexible access management.

•  Guest Network with Facebook Wi-Fi and SMS Login

Captive portal (including SMS, Facebook Wi-Fi, Voucher) and 802.1x authentication help maintain authorized guests to use the network. Boost your business with a customized marketing page.^§

•  WPA3 for Worry-Free Open Public Networks

With advanced enterprise security, WPA3 provides more data security for previously unsecured and open WiFi hotspots.

Efficiency

•  Band Steering

Automatically moves dual band devices onto the wider 5GHz band for faster connections.

•  Load Balance

Ensures large numbers of users have smooth network experiences in high-density business networks

•  Airtime Fairness

Increases average network throughput in heavily congested environments

What in the Box?

• EAP610
•  Power Adapter
•  Ceiling/Wall Mounting Kits
•  Installation Guide
