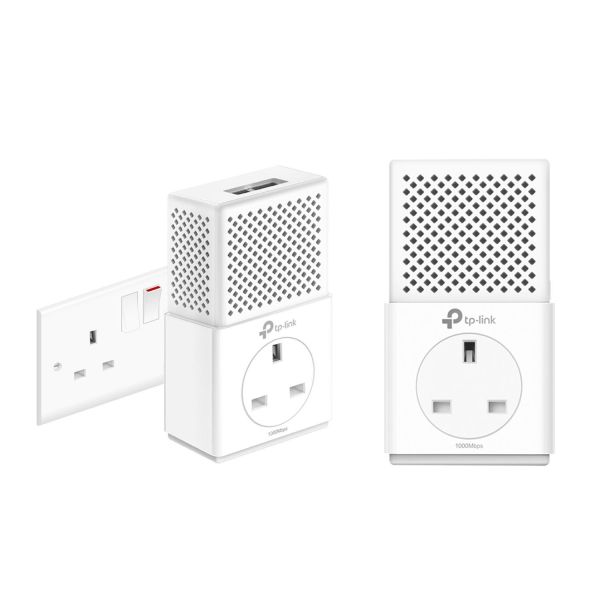

Comes with advanced HomePlug AV2 technology, TL-PA7020P KIT provides users with
high-speed data transfer rates of up to 1000Mbps, which is ideal for bandwidth intensive applications such as multiple HD/3D/4K video streaming, online gaming and large file transfers.
With 2 gigabit Ethernet ports, TL-PA7020P KIT can simultaneously connect up to 2 wired-only devices. This makes the TL-PA7020P KIT the perfect home entertainment companion. Connect any 2 devices from smart TVs and games consoles to NAS boxes and computers to the Internet at the same time. Just plug the Ethernet cable into the powerline and away you go!
Plug and Play, No Configuration Required
Connect a powerline adapter to the router; plug another powerline adapter into a wall socket in another room, and connect it to your Internet enabled device via Ethernet - and you’re done!
Where sockets are at a premium, the TL-PA7020P KIT with an integrated AC pass-through power socket, means the powerlines can be used like a traditional electrical socket. Plug your smart TV or games consoles into the powerlines, as if it were a normal plug socket. No socket needs to go to waste. The built-in noise filter helps to prevent electrical signal noise from affecting powerline performance.
Reduce Power Consumption by Up to 85%
TTL-PA7020P KIT, a new-generation of powerline adapter, with its practical design and sophisticated Power-Saving Mode, will automatically switch from its regular "Working" mode to "Power-Saving" mode reducing its energy consumption by up to 85%*
*Actual data will vary in different network conditions
and environments.
Performance | |
---|---|
Ethernet LAN interface type | Gigabit Ethernet |
Ethernet LAN | Yes |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Ethernet LAN (RJ-45) ports | 2 |
Wi-Fi | No |
Built-in power socket | Yes |
Modulation | OFDM |
Security algorithms | 128-bit AES |
Maximum operating distance | 300 m |
Technical details | |
Ethernet LAN interface type | Gigabit Ethernet |
Ethernet LAN | Yes |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Ethernet LAN (RJ-45) ports | 2 |
Wi-Fi | No |
Built-in power socket | Yes |
Modulation | OFDM |
Security algorithms | 128-bit AES |
Maximum operating distance | 300 m |
LED indicators | Yes |
Colour of product | White |
Certification | CE, RoHS |
Power | |
Power consumption (typical) | 6 W |
Power consumption (standby) | 0.5 W |
AC input voltage | 220 V |
AC input frequency | 50 Hz |
Current | 16 A |
Design | |
LED indicators | Yes |
Colour of product | White |
Certification | CE, RoHS |
System requirements | |
Windows operating systems supported | Windows 2000,Windows 2000 Professional,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64 |
Linux operating systems supported | Yes |
Mac operating systems supported | Yes |
Operational conditions | |
Operating temperature (T-T) | 0 - 40 °C |
Storage temperature (T-T) | -40 - 70 °C |
Operating relative humidity (H-H) | 10 - 90% |
Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions | |
Width | 131 mm |
Depth | 72 mm |
Height | 42 mm |
Packaging content | |
Quantity per pack | 2 pc(s) |
Quick installation guide | Yes |
Cables included | LAN (RJ-45) |
Manufacturer | TP-Link |
---|---|
Condition | NEW |
Product Name | TP-LINK TL-PA7020P KIT AV1000 2 Port Gigabit Passthrough Powerline Adapter Kit Manufacturer refurbished |
SKU | TL-PA7020P KIT V2-REFURBISHED |
EAN | 0603784358321 |
