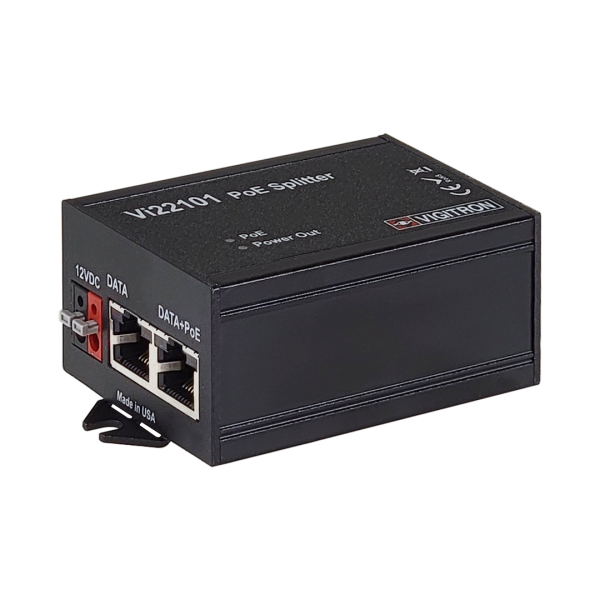

The Vi22101 is a PoE splitter that is fully compliant with IEEE 802.3af PoE standards. When used with a PoE switch or PoE Midspan, it separates PoE from Ethernet data and regulates the PoE high voltage to 12VDC.
It is designed to power Non-PoE IP devices and can provide 12VDC at up to 13W. The output voltage is selected by a slide switch. The Vi22101 is equipped with over-current protection to safeguard connected devices and can operate at an extended temperature of -40°C to +85°C. It is cost-effective and compact in size and fits easily in most camera housings.
The Vi22101 is an ideal solution that provides remote power to non-PoE IP devices to save installation time and cost.
Features
Separates PoE from Ethernet
Convert IEEE 802.3at PoE power to 12VDC
Compatible with all IEEE 802.3af/at PoE sources
Pass through data for device IP control and monitor
