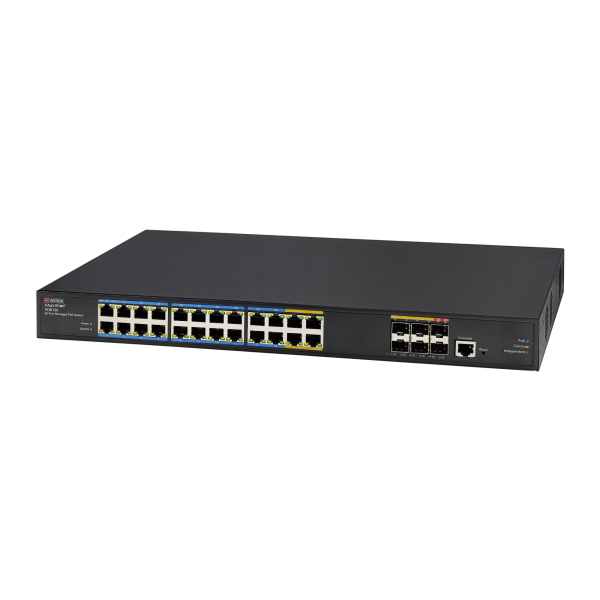

Vigitron MaxiiNet 30-Port 1G, L2+/L3 Managed 90W IEEE 802.3bt PoE Switch - Vi30130

Vigitron 24 Port MaxiiNet20 Copper, 4 combo, 2x1G Fiber uplinks 802.3bt 90w L2+-L3 lite managed network switch - Vi30130

Vigitron’s Vi30130 is a high-performance, high-power PoE switch. All copper ports can provide IEEE 802.3af/at/bt class 0-8 up to 90W. It is also compatible with some non-standard PoE up to 74W making the Vi30130 the perfect solution for powering cameras from any manufacturer and upgrading existing systems with devices requiring newer types of PoE. Up to 6 ports can be used for 1G fiber uplink connections.

Features

• 20 x 1G Copper, 4 x 1G Combo ports and 2 x 1G independent Fiber uplink ports.
• Redundant 48-57VDC 1000W backup power input.
• IEEE 802.3bt class 0-8 PoE up to 90W per port.
• Programmable PoE on 24 Ports.
• 770W PoE budget.
• 52.0 Gbps switch fabric for MP cameras.
• Built-in 6KV port surge protection.
• Unique TimeZone reference for setting system synchronization.
• G.8032 V1/V2 Rapid Ring protocol compliant.
• Jumbo frame programming at all bandwidth settings.
• Programmable port temperature settings.
• Detail Syslog with Health status messaging.
• LLDP and ACL status identification.
• Programmable port connection monitor with automatic link and PoE reconnection.
