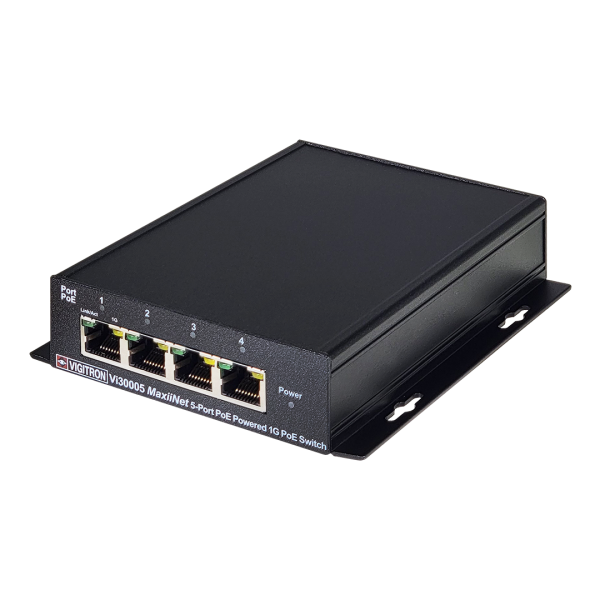

Vigitron MaxiiNet 5-Ports 1000Mbps PoE Powered PoE Switch - Vi30005

Vigitron MaxiiNet 5-Ports 1000Mbps PoE Powered PoE Switch - Vi30005

Vigitron’s MaxiiNet™ Vi30005 fixed managed 5-port 1000Mbps PoE switch brings new performance standards to the growing need for high-speed transmission of high-speed Ethernet.

The Vi30005 can be powered by PoE sources up to 72W or locally by the Vi1120 to supply 802.3at, up to 36W to each port or up to 72W for two combined ports. The PoE input is UPoE compliant. The Vi30005 operates at the standard distances of UTP up to 100m and fiber uplink up to 80Km by using its built-in MSA SFP compliant port.

Features

• 5-port Layer 2 1000Mbps PoE powered PoE switch
• 100/1000Mbps network speeds, auto-sensing
• Can be powered from a remote PoE source to provide PoE power to all 4 ports
• Up to 36W PoE per port, capable of combing each 2-ports for up to 72W
• UPoE-compliant input up to 72W
• Provides MSA compliant SFP fibre output port for integration to existing fiber infrastructures and extreme long-distance up to 80Km
• Automatic PoE port priority allocation
• Over-current shutdown protection if the located PoE budget is exceeded
• Certified (MPC™) high data rate for virtual loss-free transmission of cameras
• Type tested to RFC 2544 TCP/IP network bandwidth packet transmission standards
• Type tested for -40°C to +75°C operating temperature range
• Complies with major IEEE standards and RFC network protocols for UTP, TCP/IP, HTTP/HTTPS
• Provides full Layer 2 network switch functionality
