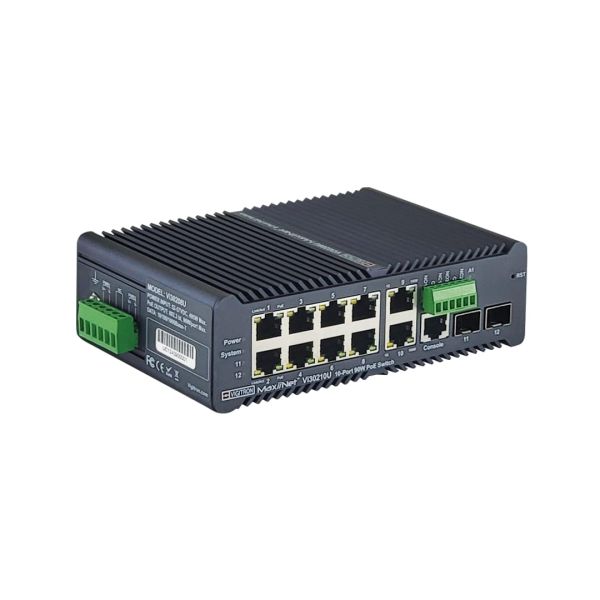

Vigitron MaxiiNet Hardened Managed 12-Port, L2+, 1G Industrial 90W PoE Ring Switch - Vi30210U

Vigitron MaxiiNet Hardened Managed 12-Port, L2+, 1G Industrial 90W PoE Ring Switch - Vi30210U

FEATURES

• 8 x 1G PoE independent copper, 2 x copper and 2 x 1G/2.5G Fiber uplink combo ports.

• 90W IEEE 802.3bt compliant PoE on 8 ports, 490W PoE budget.

• Jumbo frame programming at all bandwidth settings.

• Redundant 48-57VDC up to 500W backup power input.

• IEEE 802.3bt class 0-8 PoE up to 90W per port.

• PoE Port monitoring, auto recheck, and start-up delay.

• G.8032 V1/V2 Rapid Ring protocol compliant.

• Built-in 6KV port surge protection.

• 30 Gbps switch fabric for Mega  Pixel camera handling.

• Programmable port connection monitor with automatic link and PoE reconnection.

• LLDP and ACL connection status identification.

• Unique TimeZone reference for setting system synchronization.

• NTP and Real Time Clock (RTC).

• Dual programmable Form C alarm outputs.

• Programmable port temperature settings.

• Detail Syslog with Health status messaging.

• Operating temperature range -40ºC to +75ºC.
