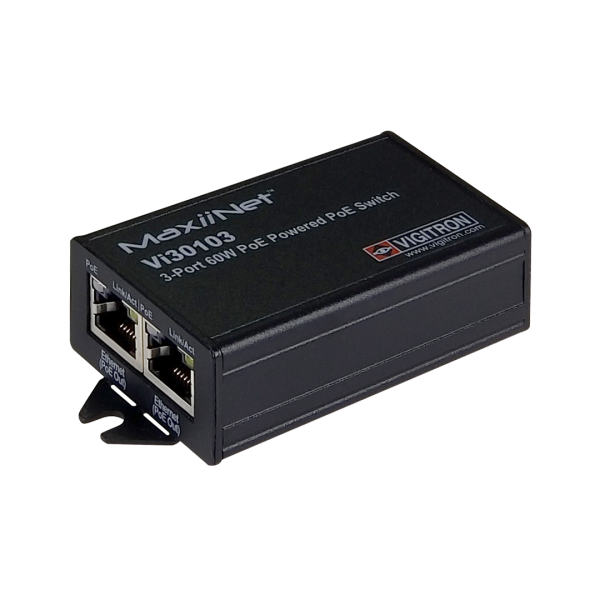

Vigitron MaxiiNet L2 Drop and Insert 3-Port 60W PoE Switch - Vi30103

Vigitron 3-Port MaxiiNet10-100 af-at 30W PoE Switch & Repeater - Vi30103

The Vi30103 is a 3-port Layer 2 PoE switch providing drop and insert capability for connecting several IP devices along a single cable run. The Vi30103 provides a cost-effective method for increasing distances beyond the standard Ethernet limit of 328 feet (100m).

Features

• Provides an easy way to add a second IP camera without requiring a new home-run cable
• Each unit extends IP Video and PoE for an extra 328 ft. (100m)
• Multiple units can be cascaded to transmit IP Video and PoE up to 3,000 ft. (909m)
• Can be powered by 60W PoE or a local power source
• Provides up to 30W PoE output per port
• Automatically senses input data rate
• Provides third port for drop and insert along a single cable run
• Provides full IEEE Network layer 2 switching to avoid transmission conflicts
• No network configuration required
• Eliminates the need for multiple cable runs for perimeter and parking lot applications
• Provides access up to 9 IP addresses eliminating the need for network switches in small systems
• Hardened with wide range operating temperature of -20°C to +60°C
