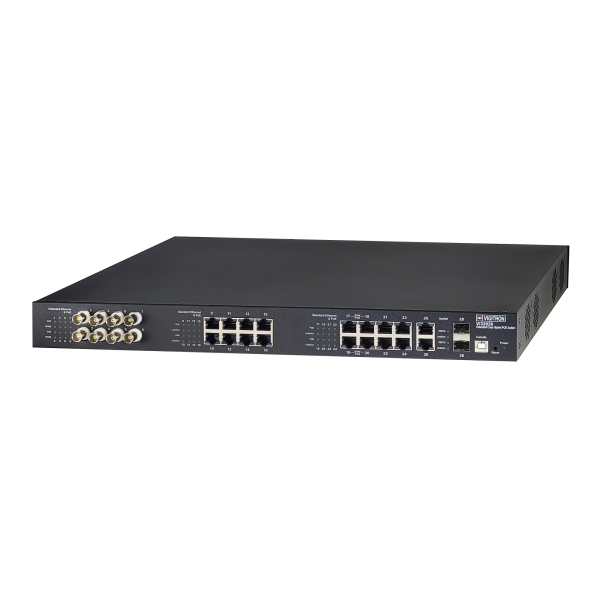

Vigitron MaxiiNet26-Port, 8-Port Coax, 16-Port Standard, L2, Hybrid PoE Switch - Vi32026

Vigitron 26-Port MaxiiNet10-100, L2 Managed, af-at 36W PoE Switch, 8-Port Extended Coax-16-Port Standard

Overview

Vigitron’s Vi32026 is the next-generation L2 managed switch designed for PoE+ and high bandwidth network applications, providing a reliable infrastructure for your business network. Eight extended Coax ports provide solutions that require both extended distance and standard distance applications in one convenient cost-effective space-saving package. The Vi32026 can provide solutions for applications up to distances of 2,000 feet (609m) providing central control maximum bandwidth utilization increasing system performance and reliability.
The Vi32026 delivers intelligent features that are needed to provide unmatched reliability to critical business applications with unique PoE monitoring and application features. The Vi32026 enables individual port programming to apply PoE individually timed to each port in order to lower the potential for power overload resulting in potential damage to the switch and connected devices.

Feature

• Perfect and cost-effective solution for converting existing analog systems to IP or adding UTP IP camera cable runs to existing analog systems
• 8 Coax ports/16 ports standard UTP and 2 uplink ports
• 36W on all ports; 72W UPoE on 4 standard UTP ports
• Transmit Data/Video and PoE up to distances of 2,000 feet (609m)
• 24 ports at 10/100Mbps, 2 shared fiber/copper Uplink ports @ 1000Mbps
• Two 1000Mbps independent Uplink ports allow for full use of all 24 ports
• SNMP for communicating error messaging to local computers
• Automatic IP and PoE connection and reconnection
• Automatic programmable MAC identification for all connected devices
• Individual port MAC detection and binding for port security
• 550W PoE budget, 685W total power supply,
• Programmable Web Access Filtering (WAF) to prevent unauthorized access
• Transient ProtectTM intelligent PoE sensing to prevent damage from short
• Intelligent Power Limit - automatically determines actual PoE power requirements
• Individual port and main power supply over-current, over-voltage, over-temperature and short protection with automatic recovery
• Provides 9G bytes fabric switching rate for handling largest megapixels IP cameras
• SecurPortTM provides individual port and complete switch protection against hacking and ghosting
