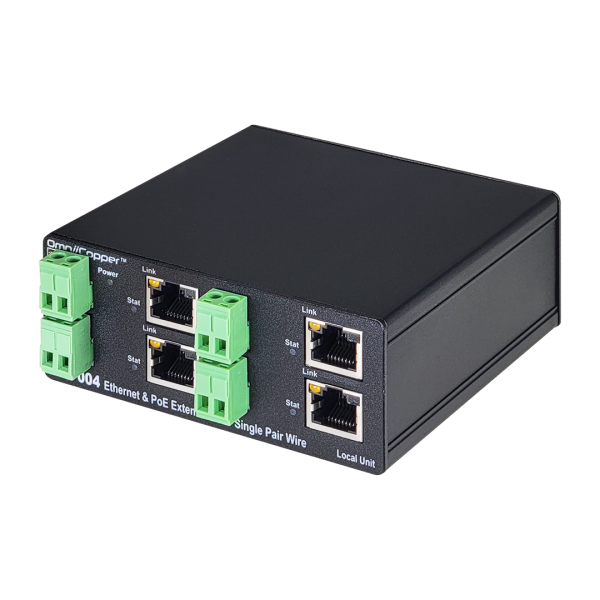

Vigitron OmniiCopper 4-Port Ethernet & PoE Receiverer over Single-Pair wires - Vi27004

4-Port Ethernet & PoE Receiver over Single-Pair wires - Wi27004

Vigitron’s OmniiCopper™ Vi27004 4-port Ethernet and PoE Receiver brings new performance standards to the growing need for high-speed transmission of full bandwidth Ethernet and PoE power over extended distances of Single-Pair Wires. It operates in conjunction with Vi27000 transmitter over virtually any 2 conductor wires reliably. The Vi27004’s unique transmission technology eliminates the potential for cross-talk resulting in the perfect solution for bundled cable runs used in many elevators and building communication systems. Its PoE performance conforms to IEEE 802.3af/at standards.

Features

• Receives Data, Video and PoE Power up to 3,000 feet (914 m) over Single-Pair Wires
• Provides 4 ports compatible with UTP, STP, and untwisted pairs
• Provides Network speeds up to 100Mbps
• Compact design for easy installation in tight spaces
• Requires no switch setting or network programming
• Mega-Pixel Certified (MPC™) High data rate, ideal for high bandwidth requirements of Mega-pixel cameras and multiple IP camera systems
• Type tested to RFC-2544 TCP/IP network bandwidth packet transmission standards
• Type tested for -30°C to +50°C temperature range under conforming to NEMA-TS2 testing standards
• Up to 4 units can be installed in a Vi5000R rackmount unit to make a sixteen-port model
