Vigitron 1-Port MaxiiCopper Ethernet and 60W PoE Extended UTP Receiver - Vi2701RX

Vigitron Ethernet and 60W PoE Extended UTP Receiver

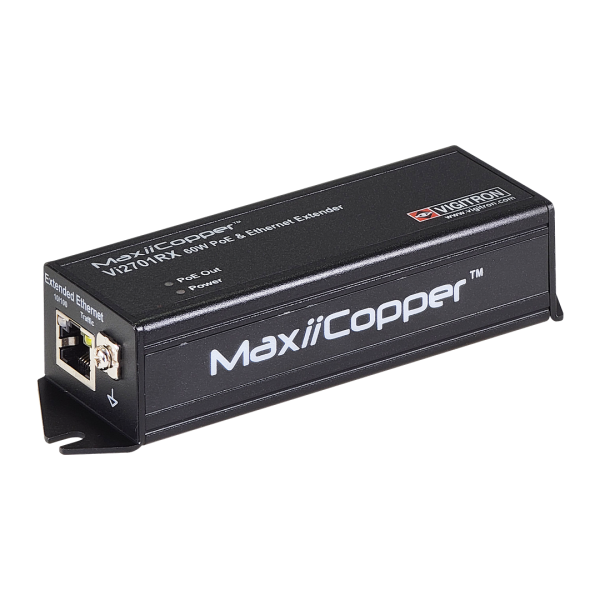

Vigitron’s MaxiiCopper™ Vi2701RX remote unit is designed to meet the growing need for Ethernet and PoE transmission of high-power cameras and other PoE-powered devices. It is able to provide up to 74W PoE power beyond Ethernet standard distances and eliminate the need for expensive remote-site power supplies, significantly lowering system installation and operating costs. The Vi2701RX supports both single PD or dual PD PoE cameras. It is compatible with Vigitron's Vi2701TX and Vi2300 series UTP Extenders.

Features

• Provides Ethernet data and PoE power up to 60W to extended distances
• It extends Ethernet and PoE up to 3,000 feet (914m) of UTP cables
• Up to 74W can be provided to the Vi2701RX and Vi2300 extender series
• Provides IEEE 802.3af,at, UPoE PoE up to 74W
• Meets the increasing requirements for high-power PoE fixed and dome cameras
• MegaPixel Certified (MPC™) high data rate, for virtual loss-free transmission of cameras requiring Jumbo Frame transmission
• Symmetric Bandwidth (SBW™) provides consistent upload and download with Virtual Zero Packet Loss (VZPL™) over total specified distance
• Type tested to RFC 2544 TCP/IP network bandwidth packet transmission standards and Jumbo Frame Transmission
• Wide operating temperature of -20°C to +75°C
• Compliant to IEEE 802.3af/at and can drive loads with one PD or 2 PD remote PoE loads
