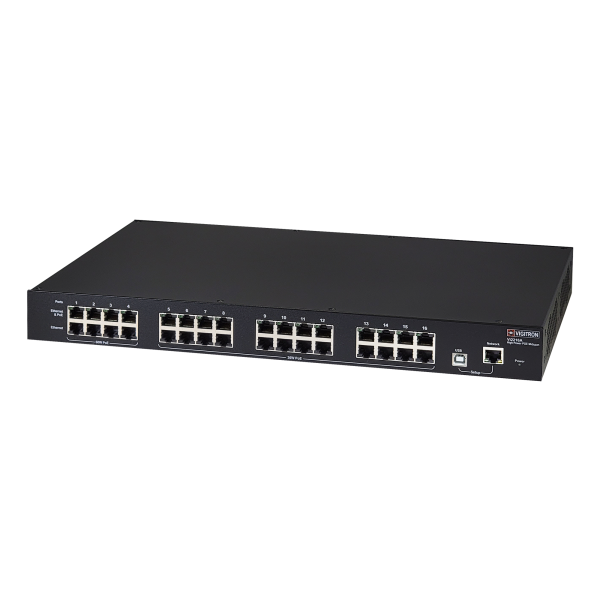

Vigitron MaxiiPower Managed 16-port Extended UTP PoE Midspan - Vi2516

Vigitron 16-Port MaxiiPowerManaged af-at 72W PoE Midspan w- UTP Extender (600W PS)

MaxiiPower™ Vi2516 midspan is a managed 16-port extended PoE midspan designed to meet the most demanding IP camera data and PoE requirements at extended distances. It is fully manageable and provides up to 36W per port, on all ports and 72W PoE on Ports 1-4 for high power applications such as PTZ cameras. The Vi2516 provides extended distance transmission over UTP using Vigitron's unique Symmetric Bandwidth (SBW™) technology.

Features

• High-power Midspan with built-in Ethernet extender for distances up to 3,000 ft (914 m)
• 16 ports of IEEE 802.3 af, at compliant up to 36W per port simultaneously on all ports
• Fully manageable with Windows GUI accessible through a local USB port or network connection with default plug-and-play options 1-4 can provide 72W each
• Provides full.af (12.95W) up to 3,000 ft./914 m and full.at (25.4W) up to 800 ft. (243 m)
• Provides programmable PoE power-up delay per port for reducing start-up power surges
• Can provide 100Mbps data and 72W PoE for IP cameras with heaters, blowers, and high-speed PTZ operation
• Managed in-rush current prevents shut down during camera events such as start-up, day/night, auto back focus heater and blower turn on, and PTZ operation
• No IP address programming or other networking setup is required
