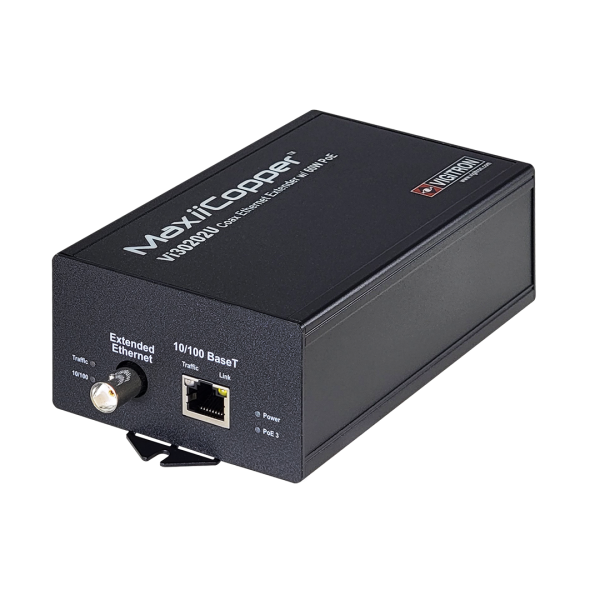

Vigitron 1-Port MaxiiPower Coax Ethernet Extender w/60W PoE & DC input - Vi30202U

Vigitron 1-Port MaxiiPower Coax Ethernet Extender w/60W PoE & DC input - Vi30202U

The Vi30202U is the perfect solution for replacing existing analog PTZ cameras with IP PTZ cameras. It uses the existing Coax cable for transmitting IP video up to 5,000 feet (1,515 m) and the existing 24VDC or 24VAC power supply as power input to provide up to 60W PoE to the cameras. Using the existing Coax cable and power supply provides great time and cost savings.

Features

• Coax Ethernet extender for distances up to 5,000 feet (1,515m)
• Uses 24-48VDC or 24VAC input power to provide IEEE 802.3bt up to 60W PoE power
• Automatically senses PD power class and single or dual PD devices
• Compact size easily fits into most existing housings and camera mounts
• Hardened with a wide range of operating temperatures of -40°C to +75°C
• Symmetric Bandwidth(SBW™) provides consistent upload and download with Virtual Zero Packet Loss (VZPL™) over a total specified distance
• MegaPixel Certified (MPC™) High data rate, ideal for high bandwidth requirements of Mega-pixel cameras for Jumbo Frame transmission
• Type tested to RFC-2544 TCP/IP network bandwidth packet transmission standards
• Fully transparent to Ethernet networks and higher layer protocols
• Data rate selectable for maximum bandwidth utilization
• Complies to major IEEE standards and RFC network protocols for UDP, TCP/IP, HTTP/HTTPS
