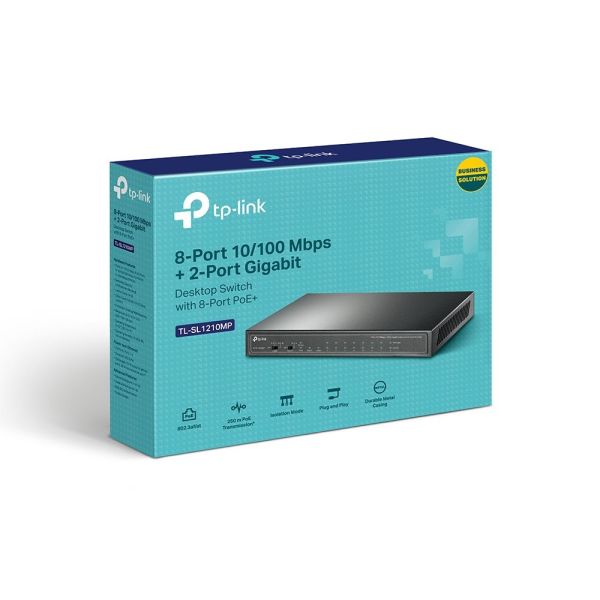

TP-Link 8-Port PoE+100Mbps + 2-Port Gigabit Desktop Switch

TP-Link 8-Port PoE+100Mbps + 2-Port Gigabit Desktop Switch

• With 8 PoE+ ports, transfers data and power on one single cable
• Working with IEEE802.3af/at compliant PDs, expands your network
• Supports PoE power up to 30 W for each PoE port
• Supports PoE power up to 124 W* for all PoE ports
• Up to 250 m data and power transmission under Extend** Mode specially designed for surveillance system
• Isolation Mode allows one-click client traffic separation for higher security and performance
• Requires no configuration and installation

What This Product Does

TL-SL1210MP is an unmanaged PoE switch with eight 10/100 Mbps ports, one Gigabit port and one SFP port, and its total PoE budget of the eight PoE+ ports is 124 W*. It can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to wherethere are no power lines or outlets, where you wish to fx devices such as APs, IP Cameras or IP Phones, etc.

How This Product Works

8 of the 11 Auto-Negotiation RJ45 ports (port 1 to port 8) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af/at compliant Powered Devices (PDs).

Overload Arrangement

TL-SL1210MP has a priority function which will help protect the system when the system power is overloaded. If all PoE PD's power consumption is larger than 124 W*, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.

Intelligent Power Management

Priority (port 1 > port 2 >...> port 7 > port 8): This function will help protect the system when the system power is overloaded. For example, port 1, 2, 3 and 5 use 30 W (maximum power per port is 30 W); the system power now is 120 W. If there is an additional PD inserted into port 4 with 30 W, then the system will cut off the power of port 4 because of the overloaded power, this means port 1, 2, 3 and 4 will use 30 W, no power will be supplied to port 5.
